iStarUSA BPN-DE340HD | 3×5.25 to 4×3.5 Trayless Hot-Swap | 12Gb/s
Available in stock (50)
Key Features
- 3×5.25" to 4×3.5" Trayless Hot-Swap Cage — Converts three 5.25" bays into four drive slots with tool-free, trayless drive installation
- 12Gb/s SAS I/II/III & SATA I/II/III — Latest-generation interface speed for high-performance HDDs up to 14TB
- Metal Key Lock Mechanism — Aluminum front bezel with key lock for physical drive security against unauthorized access

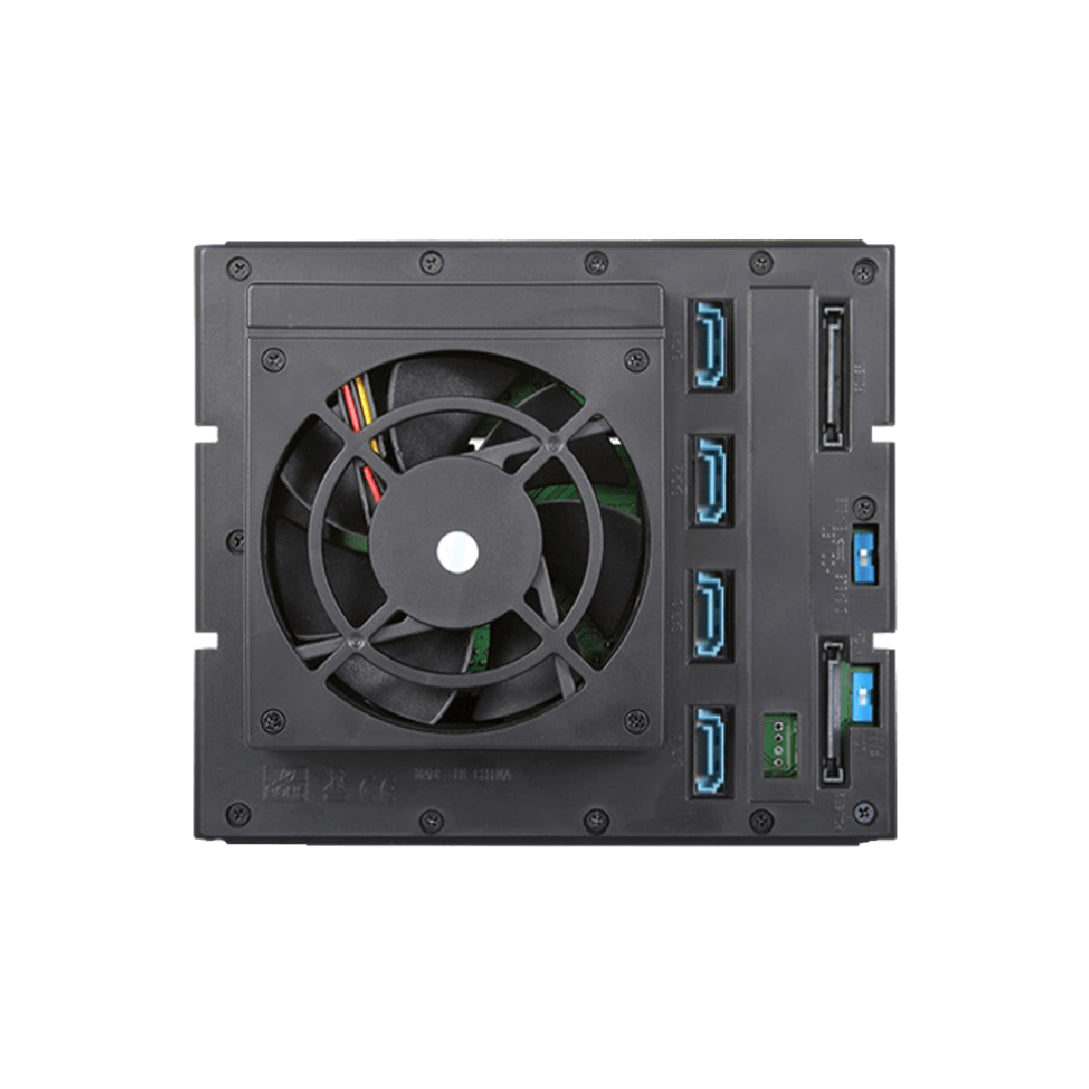

- 80mm Fan with Adjustable Speed — Ultra-quiet active cooling with speed control for noise and temperature balance
- Removable Fan Cover — Easy front-panel access for fan maintenance without disassembly
- Multi-Function LED Indicators — Blue LED display for power, drive activity, and status monitoring
- Full Aluminum Construction — Heavy-duty integrative shaping for maximum heat dissipation and structural durability
- RAID Ready — Supports RAID configurations with a compatible external RAID controller
- Available in Black, Blue, Red & Silver — Four color options to match any chassis or rack aesthetic
The iStarUSA BPN-DE340HD is a 12Gb/s trayless hot-swap hard drive cage that converts three standard 5.25" external drive bays into four accessible 3.5" SAS/SATA hot-swap slots. Supporting the latest 12Gb/s SAS III and SATA III transfer rates, it handles modern high-capacity drives up to 14TB in demanding server, NAS, and workstation deployments. The trayless design allows drives to be inserted and removed without a separate caddy — reducing installation time and eliminating tray management overhead.
The aluminum front bezel includes a metal key lock mechanism that physically secures installed drives against unauthorized removal — essential for shared rack environments and secure storage deployments. An 80mm fan with adjustable speed control and ultra-quiet operation maintains thermal stability during continuous use. The full aluminum integrative-shaping construction provides both structural rigidity and maximum passive heat dissipation. Supports RAID 0/1/5/10 with a compatible external controller. Available in Black, Blue, Red, and Silver.
Ideal For
- Server & NAS High-Density Storage — Four hot-swap bays in three 5.25" slots for compact, efficient storage expansion
- Secure Rack Deployments — Key lock bezel prevents unauthorized drive access in shared or sensitive environments
- RAID Arrays — Compatible with external controllers for RAID 0/1/5/10 configurations
- Video Editing & Media Production — 12Gb/s throughput for HD/4K video and large dataset storage
- Enterprise & Data Center Builds — Heavy-duty aluminum for continuous 24/7 operation
Variant Options
- Black — MPN: BPN-DE340HD-BLACK

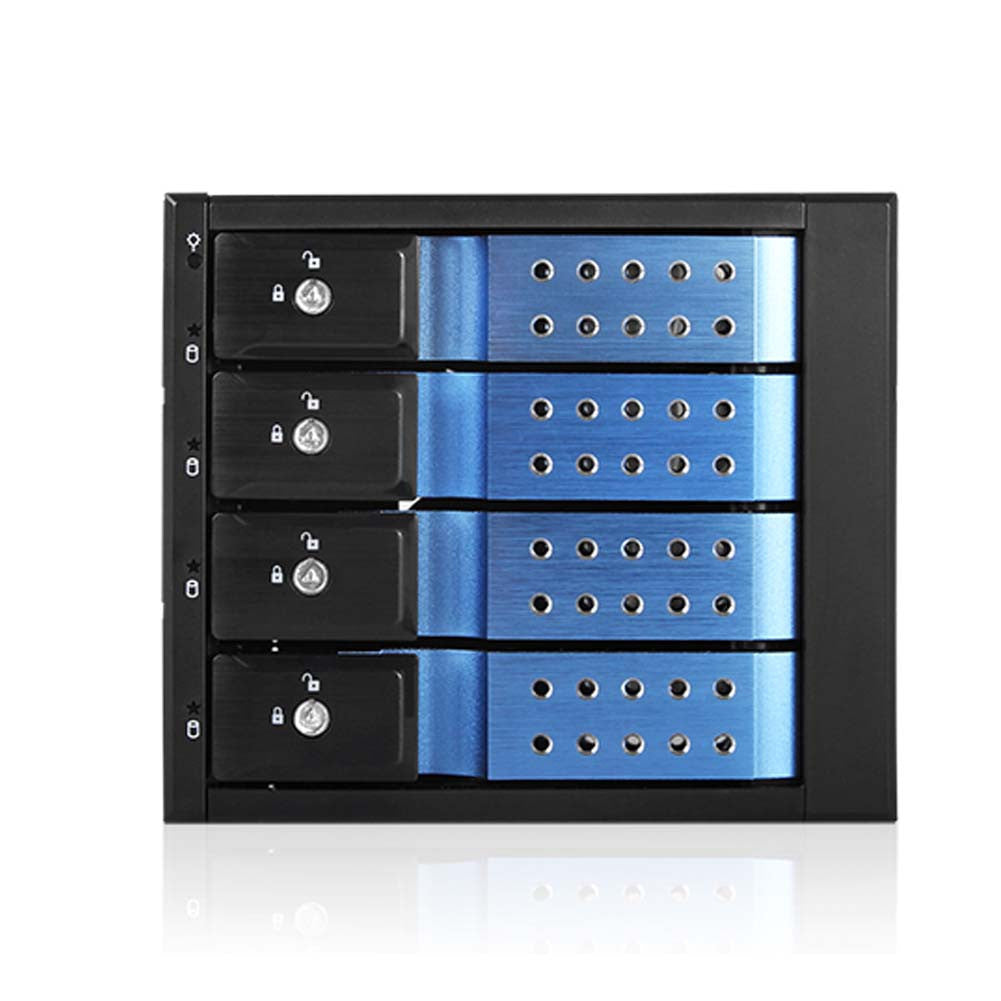

- Blue — MPN: BPN-DE340HD-BLUE

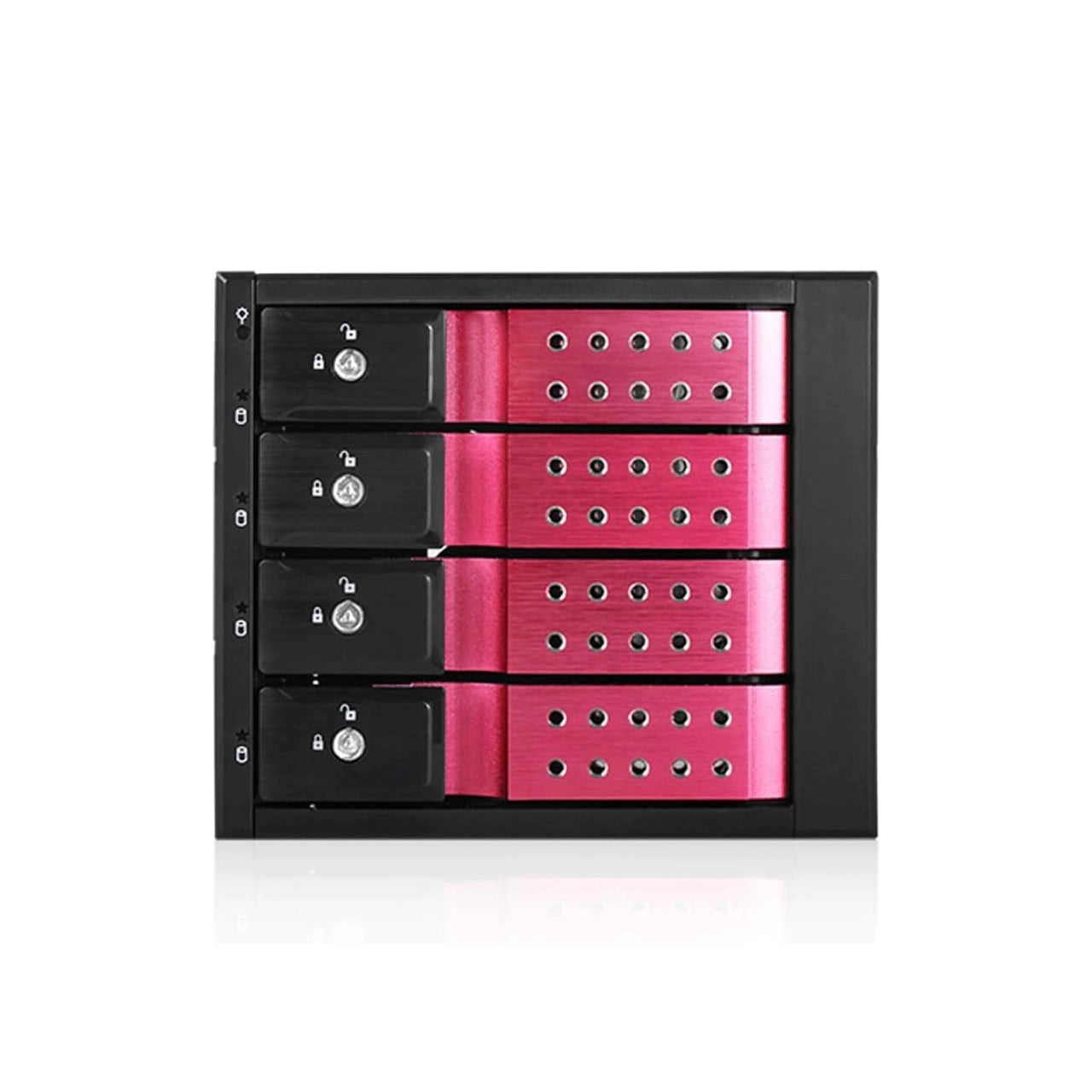

- Red — MPN: BPN-DE340HD-RED
- Silver — MPN: BPN-DE340HD-SILVER
Specifications
- Bay Conversion — 3× 5.25" external to 4× 3.5" internal
- Drive Support — 3.5" SAS I/II/III, SATA I/II/III HDD
- Max Drive Capacity — Up to 14TB
- Transfer Rate — Up to 12Gb/s
- Hot-Swap — Yes — trayless
- Security — Metal key lock on aluminum front bezel
- Cooling — 80mm fan with adjustable speed control
- Construction — Full aluminum (integrative shaping)
- LED — Multi-function blue LED display
- RAID Support — Yes (requires external RAID controller)
- Colors — Black, Blue, Red, Silver
