iStarUSA BPU-230HD Hot-Swap Backplane | 2×5.25 to 3×3.5 | 12Gb/s
Available in stock (50)
Key Features
- 2×5.25" to 3×3.5" Drive Bay Conversion — Fits three 3.5" SAS/SATA drives into two standard 5.25" bays for compact high-density storage
- 12Gb/s SAS III / SATA III Support — Full-speed throughput for modern HDDs and SSDs
- Hot-Swap Drive Bays — Replace or add drives without powering down for continuous uptime
- 70mm Cooling Fan with Front-to-Back Airflow — Active cooling maintains stable drive temperatures during sustained operation
- LED Status Indicators — Power, fan, and temperature alerts for at-a-glance monitoring
- Full Aluminum Construction — Structural durability and passive heat dissipation for long-term reliability
- Available in Black, Silver, Red & BPL — Color options to match any server or workstation chassis
The iStarUSA BPU-230HD converts two standard 5.25" drive bays into three hot-swappable 3.5" SAS/SATA drive bays — delivering a 3:2 storage density gain in chassis with limited bay availability. Supporting transfer rates up to 12Gb/s via SAS III and SATA III, it handles modern high-capacity HDDs and SSDs at full interface speed. Hot-swap capability allows drives to be replaced or added while the system remains powered on, minimizing downtime in production storage environments.
The built-in 70mm fan maintains front-to-back airflow across all three drive bays for consistent thermal management under continuous load. LED indicators for power, fan status, and temperature provide real-time monitoring without requiring software. Full aluminum construction ensures structural stability and efficient passive heat dissipation alongside the active cooling. RAID configurations are supported with a compatible external controller, making the BPU-230HD suitable for redundant and high-performance storage setups.
Ideal For
- Server & NAS Storage Expansion — Three hot-swap bays in two 5.25" slots for rackmount and tower storage builds
- RAID Arrays — Compatible with external RAID controllers for RAID 0/1/5/10 configurations
- Video Editing & Media Production — 12Gb/s throughput for HD/4K video editing and high-capacity media storage
- Data Backup Servers — Hot-swap drives for disk-to-disk backup and continuous data protection
- Workstation Storage Upgrades — Compact multi-drive expansion using existing 5.25" optical bay slots
Variant Options

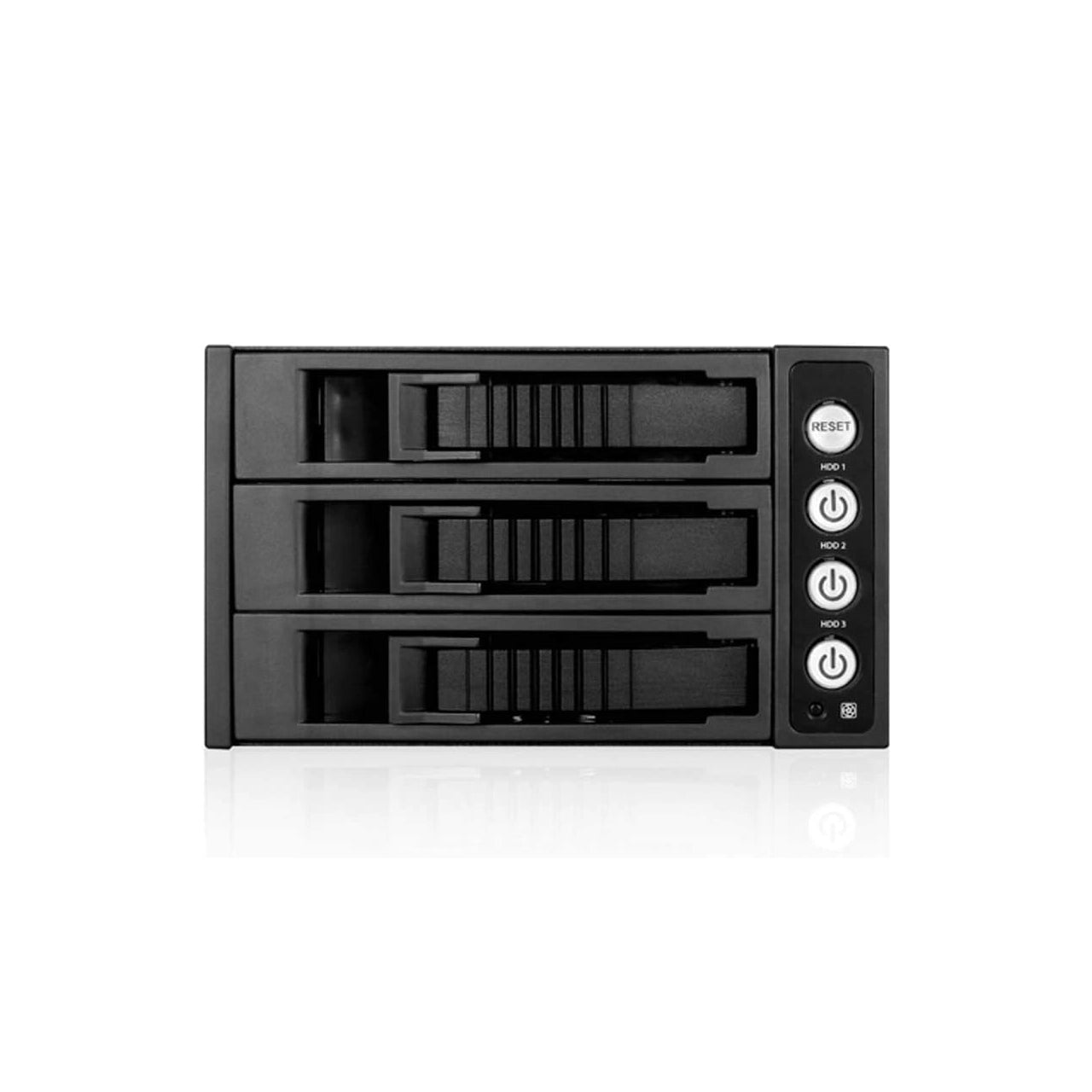

- Black — MPN: BPU-230HD-BLACK

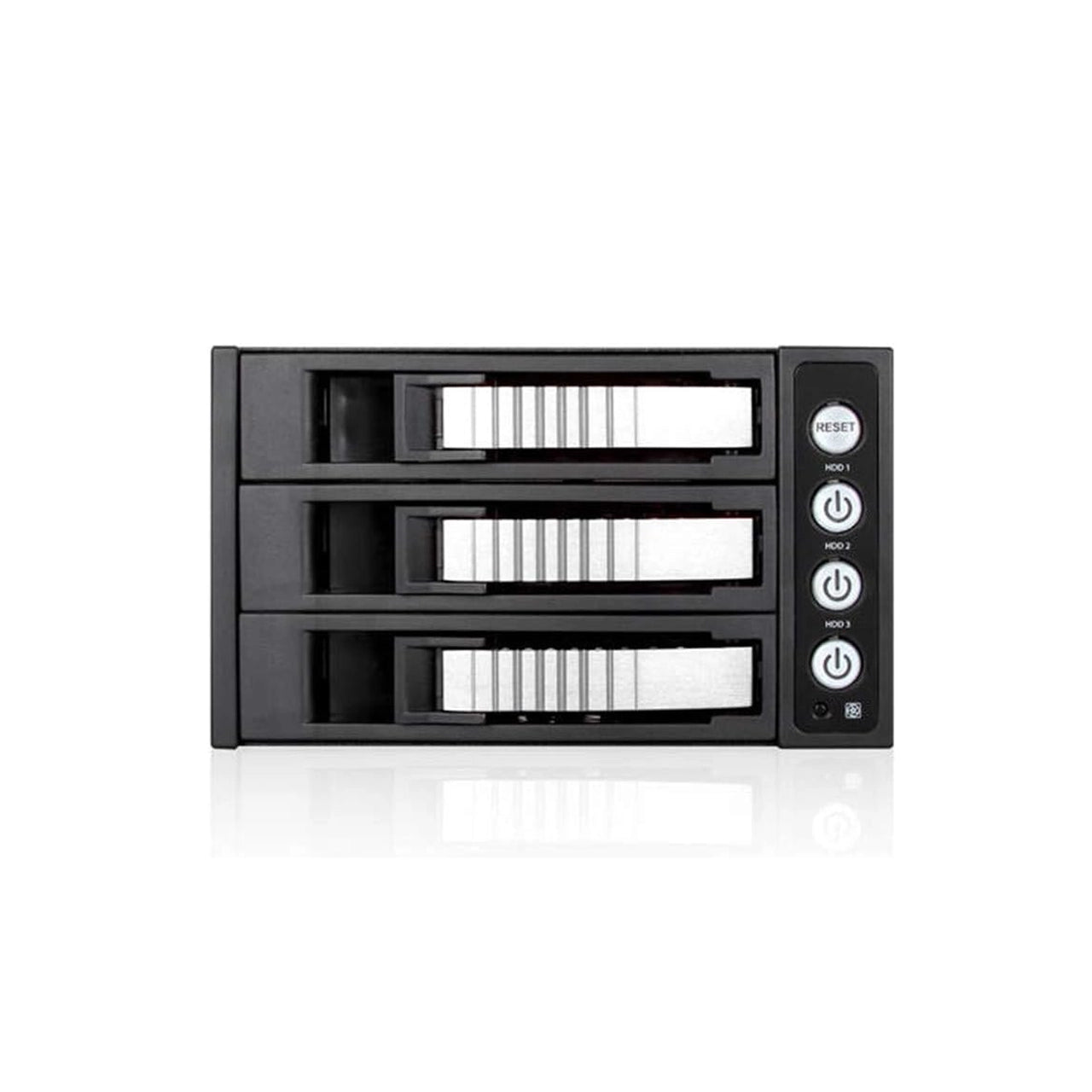

- Silver — MPN: BPU-230HD-SILVER

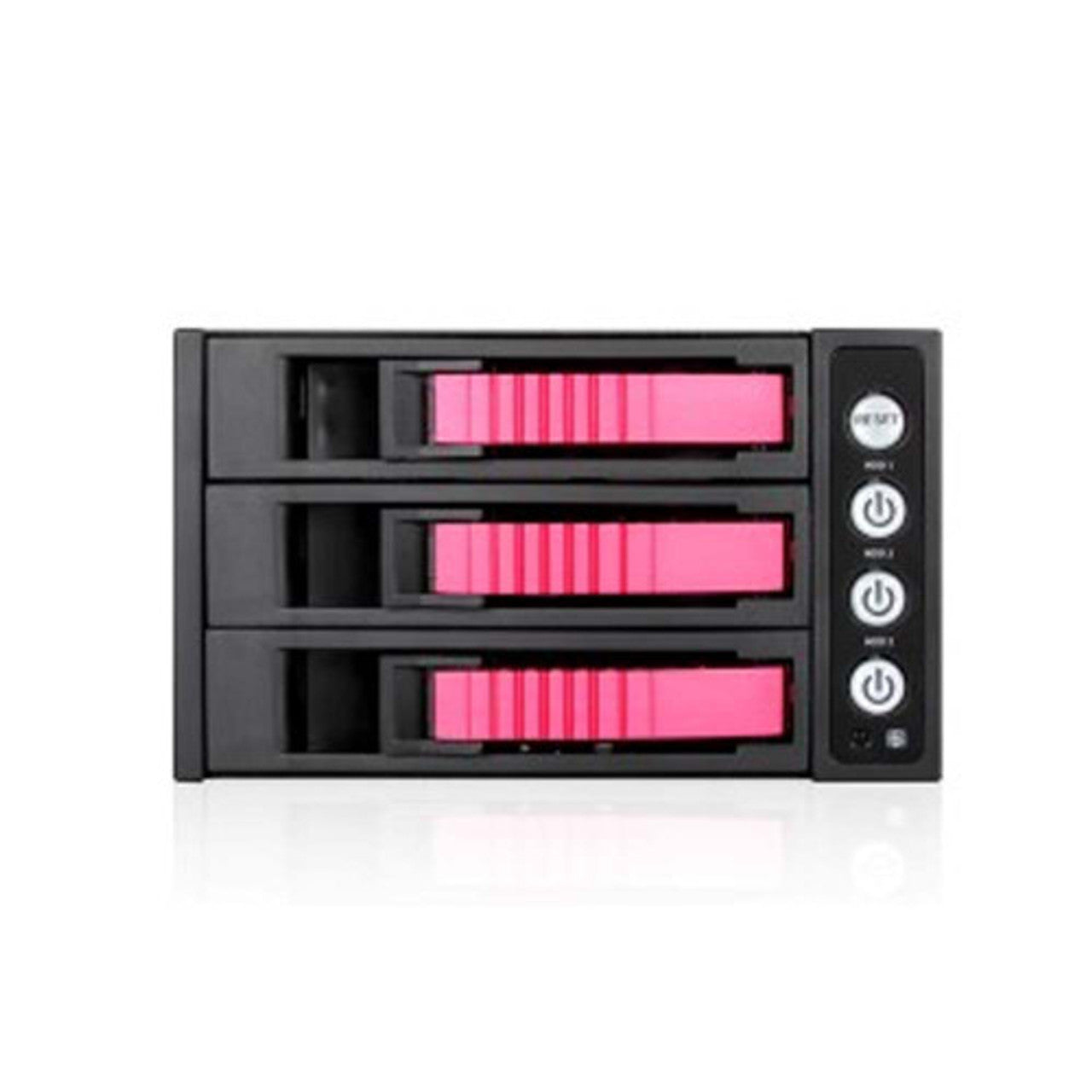

- Red — MPN: BPU-230HD-RED

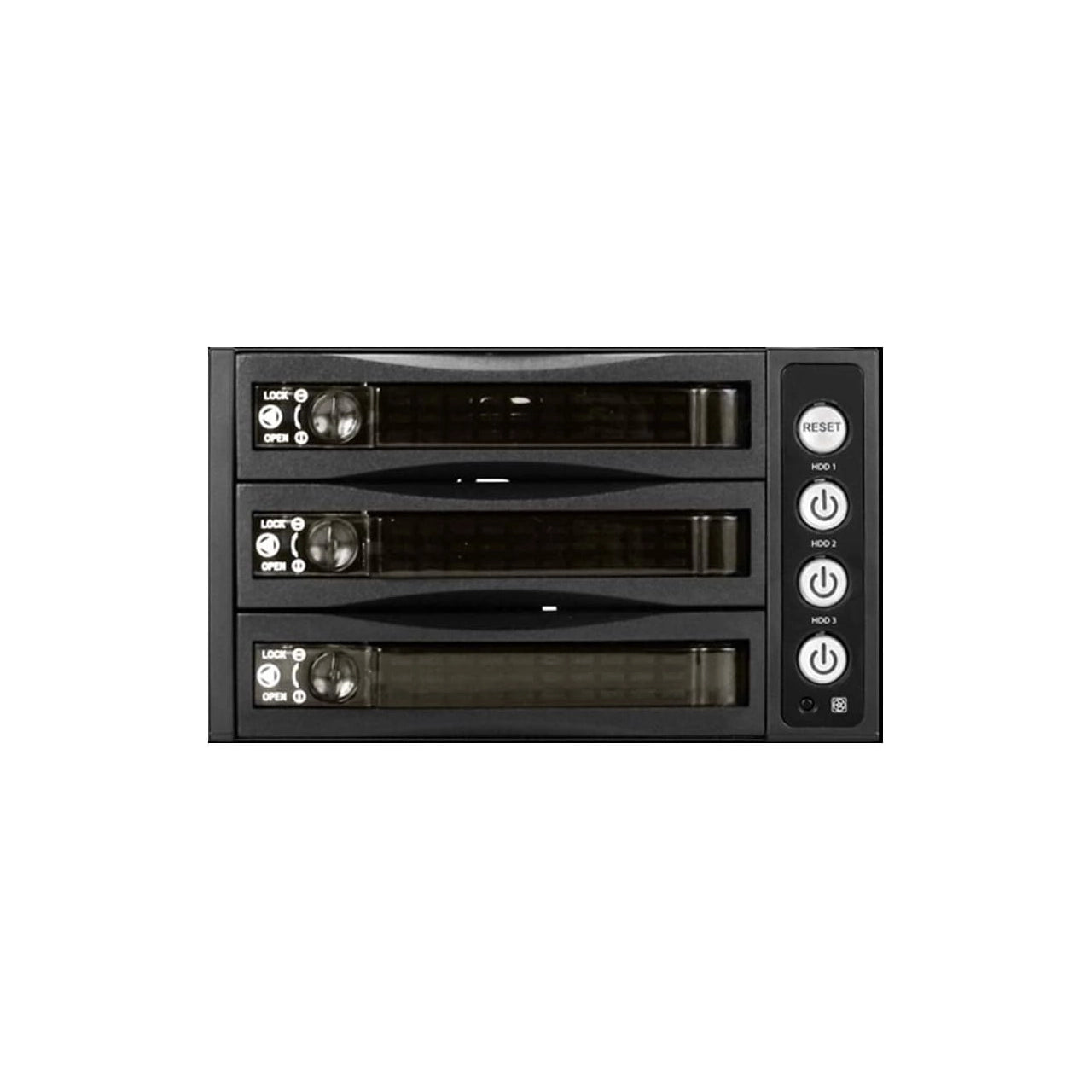

- BPL (Black — Locking Bay Doors) — MPN: BPU-230HD-BPL
Specifications
- Bay Conversion — 2× 5.25" external to 3× 3.5" internal
- Drive Support — 2.5" & 3.5" SAS/SATA HDD/SSD
- Transfer Rate — Up to 12Gb/s (SAS III / SATA III)
- Hot-Swap — Yes
- Cooling — 70mm fan, front-to-back airflow
- LED Indicators — Power, fan, temperature
- Construction — Full aluminum
- Colors — Black, Silver, Red, BPL
