ARCTIC TP-3 Thermal Pad | Silicone | 3 Sizes × 3 Thickness | Blue
Hurry up, only 1 item left in stock.
- Ultra-Soft & Highly Compressible — 55 Shore OO — Fills microscopic gaps and uneven surfaces between components and heatsinks for maximum thermal contact
- Electrically Insulating — Safe for direct application on VRAM chips, MOSFETs, chipsets, and PCB components without short circuit risk
- Flexible & Cuttable — Trims easily to any custom shape for SSDs, GPUs, laptops, and consoles
- -40°C to 150°C Operating Range — Stable performance across all PC, laptop, and console thermal scenarios

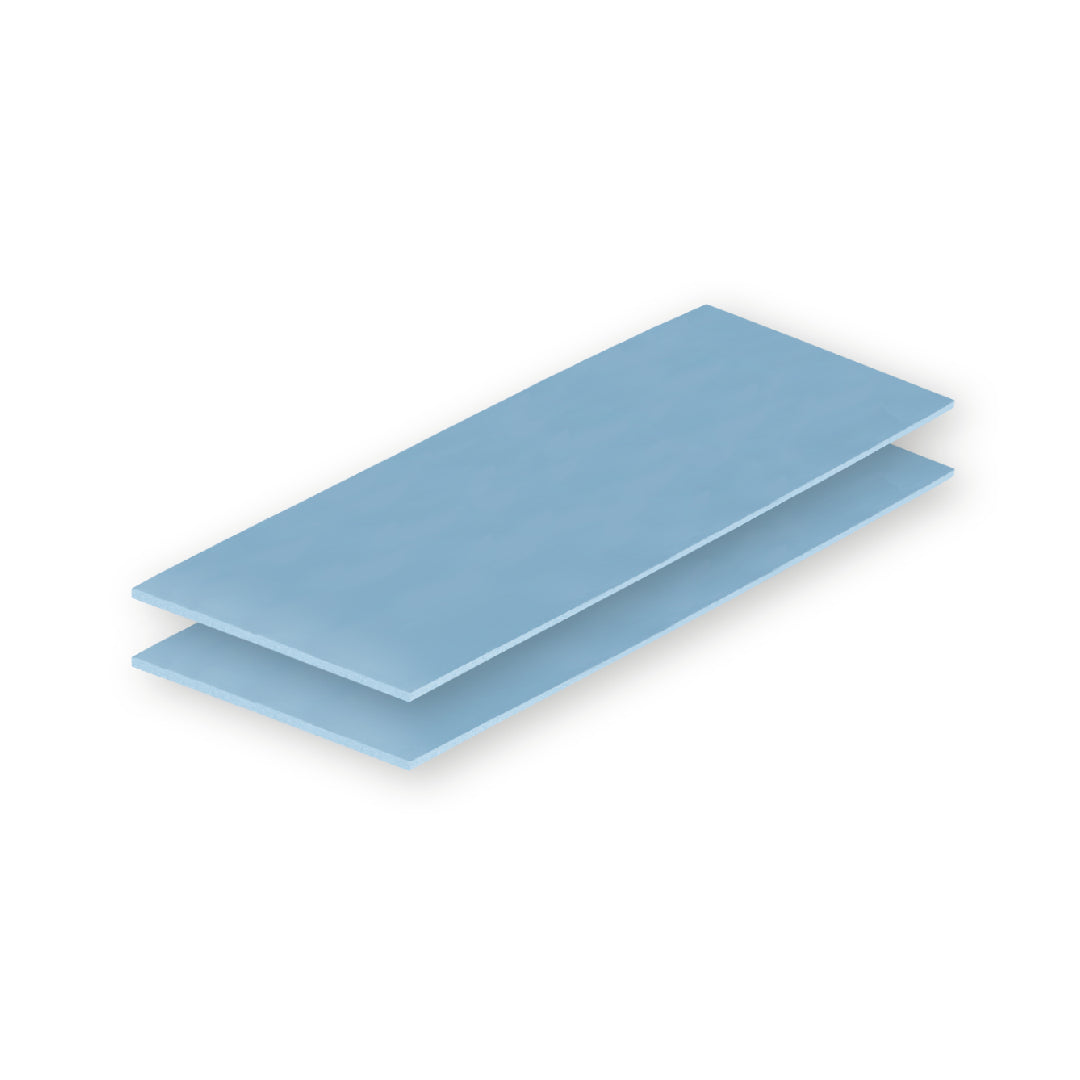

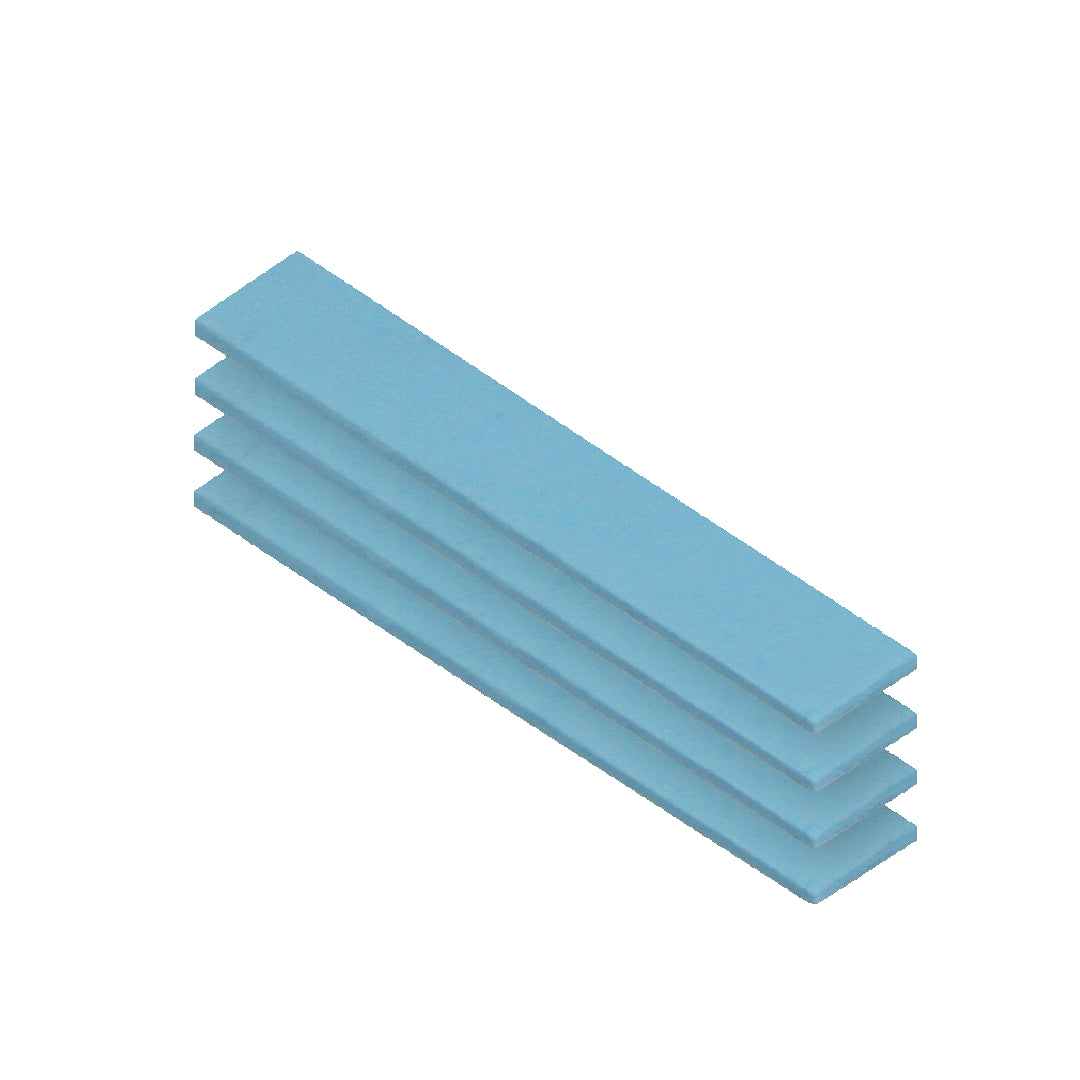

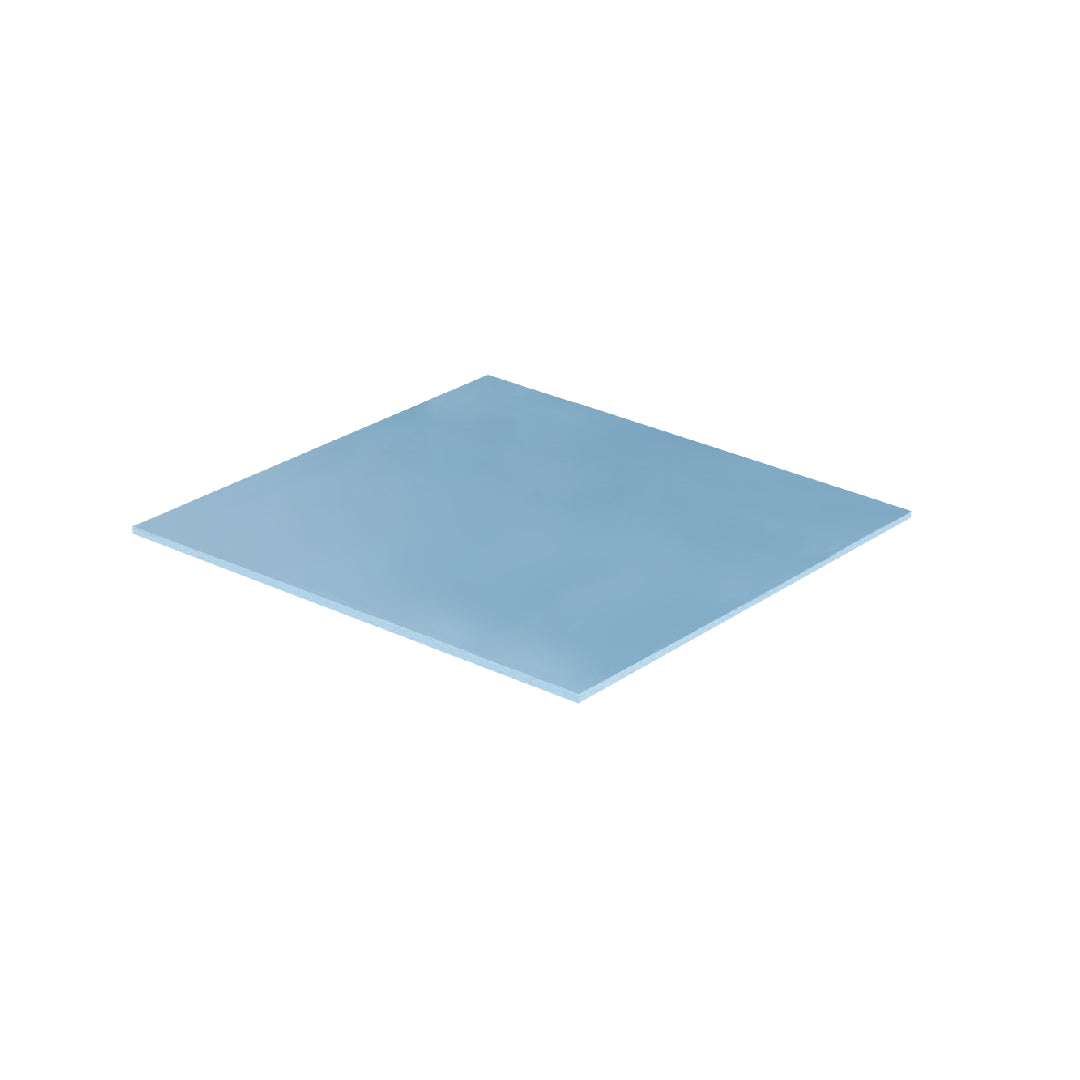

- 3 Size Options — 120×20mm (4 pcs), 100×100mm (1 pc), 200×100mm (2 pcs)
- 3 Thickness Options — 0.5mm, 1.0mm, 1.5mm to match varying component gap sizes
- Blue Silicone Material — Premium silicone with special thermal filler for reliable, long-term gap filling
The ARCTIC TP-3 is a premium soft silicone thermal pad designed to transfer heat efficiently between electronic components and heatsinks. With a 55 Shore OO hardness rating — exceptionally soft even for a thermal pad — it conforms to surface irregularities caused by manufacturing tolerances, solder joints, and component height differences, ensuring full-surface thermal contact without requiring heavy mounting pressure. Electrically insulating throughout, it can be safely applied directly over sensitive PCB components including VRAM, MOSFETs, and chipset dies.
Available in three sizes and three thickness options, the TP-3 covers the most common thermal gap applications — from thin M.2 SSD heatsink installations at 0.5mm to thick GPU backplate or console gap fills at 1.5mm. The 120×20mm format is pre-cut into 4 strips optimized for M.2 SSD modules and small component rows. The 100×100mm and 200×100mm formats are ideal for GPU VRAM arrays, laptop heatsink plates, and custom cooling solutions that require larger pad coverage.
Ideal For
- M.2 SSD Heatsink Installation — 120×20mm strips perfectly sized for M.2 module gap filling
- GPU VRAM & VRM Cooling — Soft, compressible pad for even contact on graphics card memory modules
- Motherboard Chipset & MOSFET Cooling — Electrically safe coverage for sensitive PCB components
- Laptop & Console Thermal Maintenance — Flexible, cuttable silicone for irregular heatsink surfaces
- Custom Cooling Builds — Large 200×100mm format for full heatsink plate coverage
Variant Options
- 120×20mm / 0.5mm / 4 pcs — MPN: ACTPD00055A
- 120×20mm / 1.0mm / 4 pcs — MPN: ACTPD00056A
- 120×20mm / 1.5mm / 4 pcs — MPN: ACTPD00057A
- 100×100mm / 0.5mm / 1 pc — MPN: ACTPD00052A
- 100×100mm / 1.0mm / 1 pc — MPN: ACTPD00053A
- 100×100mm / 1.5mm / 1 pc — MPN: ACTPD00054A
- 200×100mm / 0.5mm / 2 pcs — MPN: ACTPD00058A
- 200×100mm / 1.0mm / 2 pcs — MPN: ACTPD00059A
- 200×100mm / 1.5mm / 2 pcs — MPN: ACTPD00060A
Specifications
- Material — Silicone with special thermal filler
- Color — Blue
- Hardness — 55 Shore OO
- Operating Temperature — -40°C to 150°C
- Thickness Options — 0.5mm / 1.0mm / 1.5mm
- Sizes — 120×20mm, 100×100mm, 200×100mm
- Electrical Conductivity — Electrically insulating
- Application — CPU, GPU, VRAM, SSD, chipset, laptop, console
