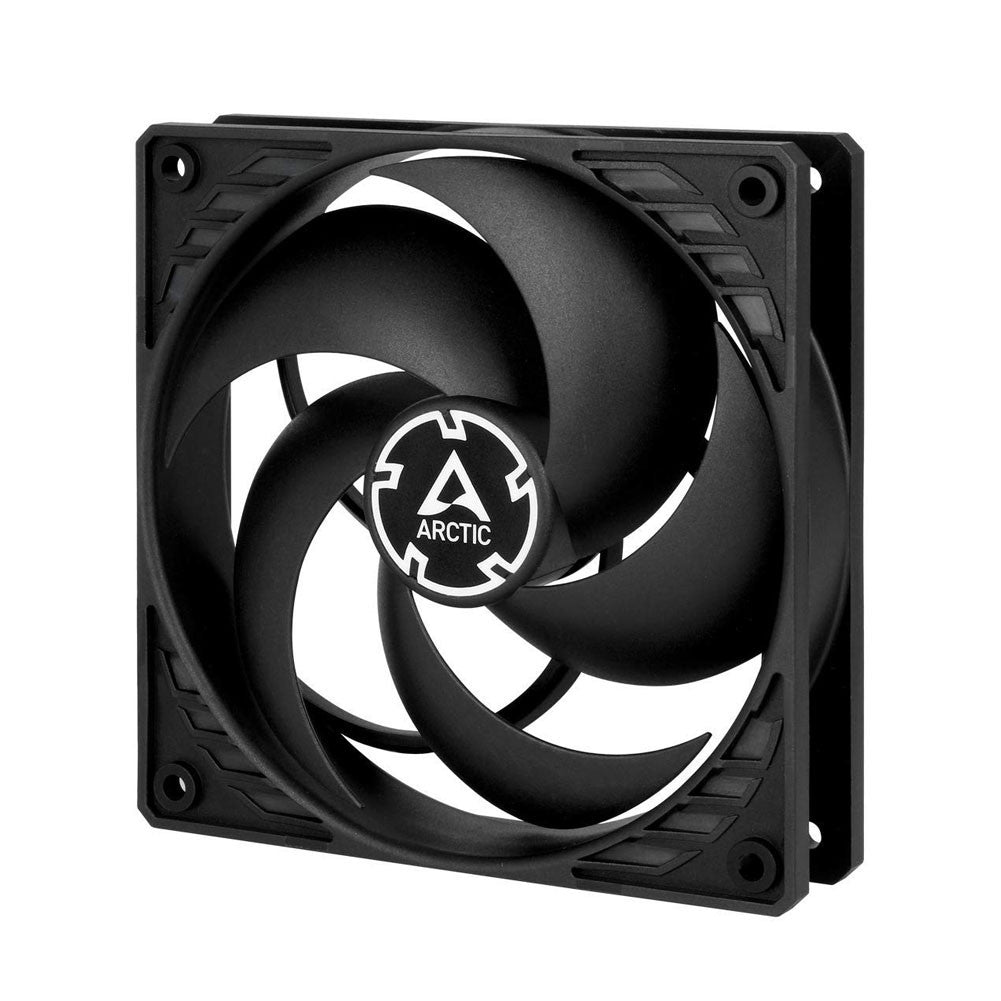

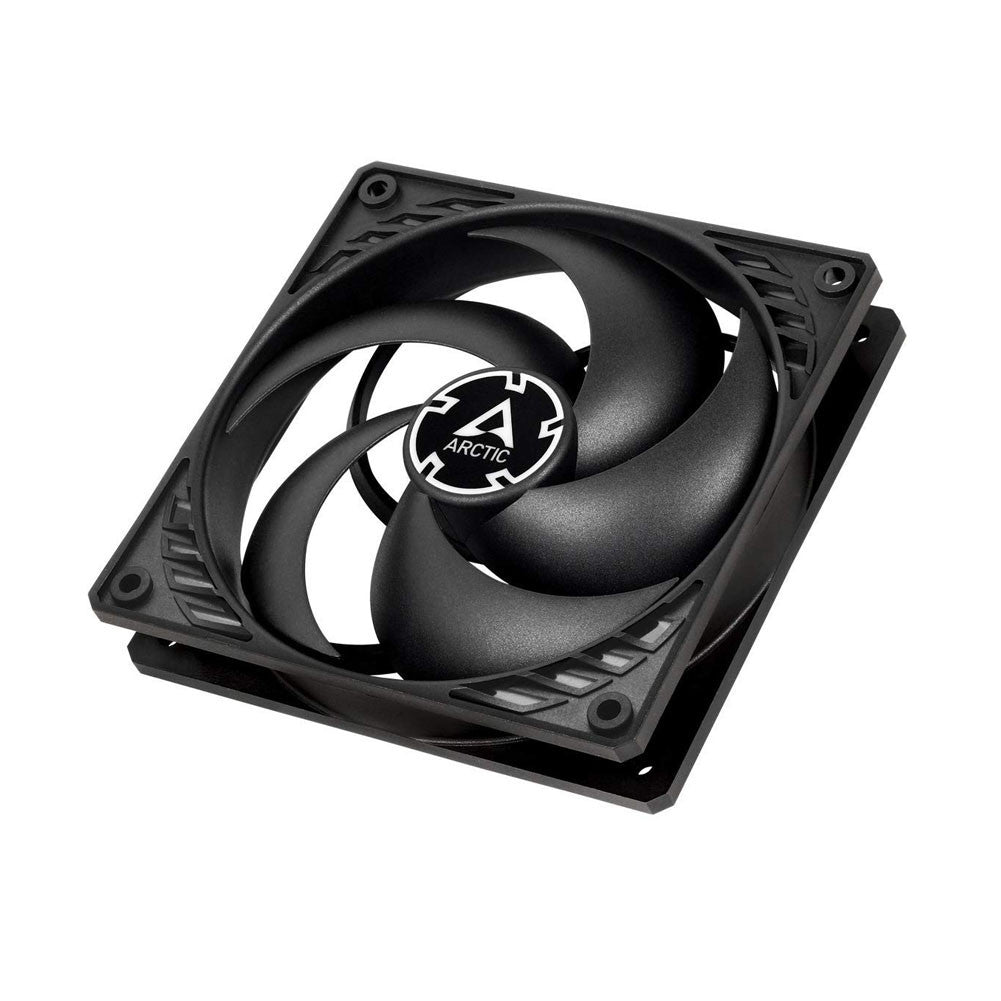

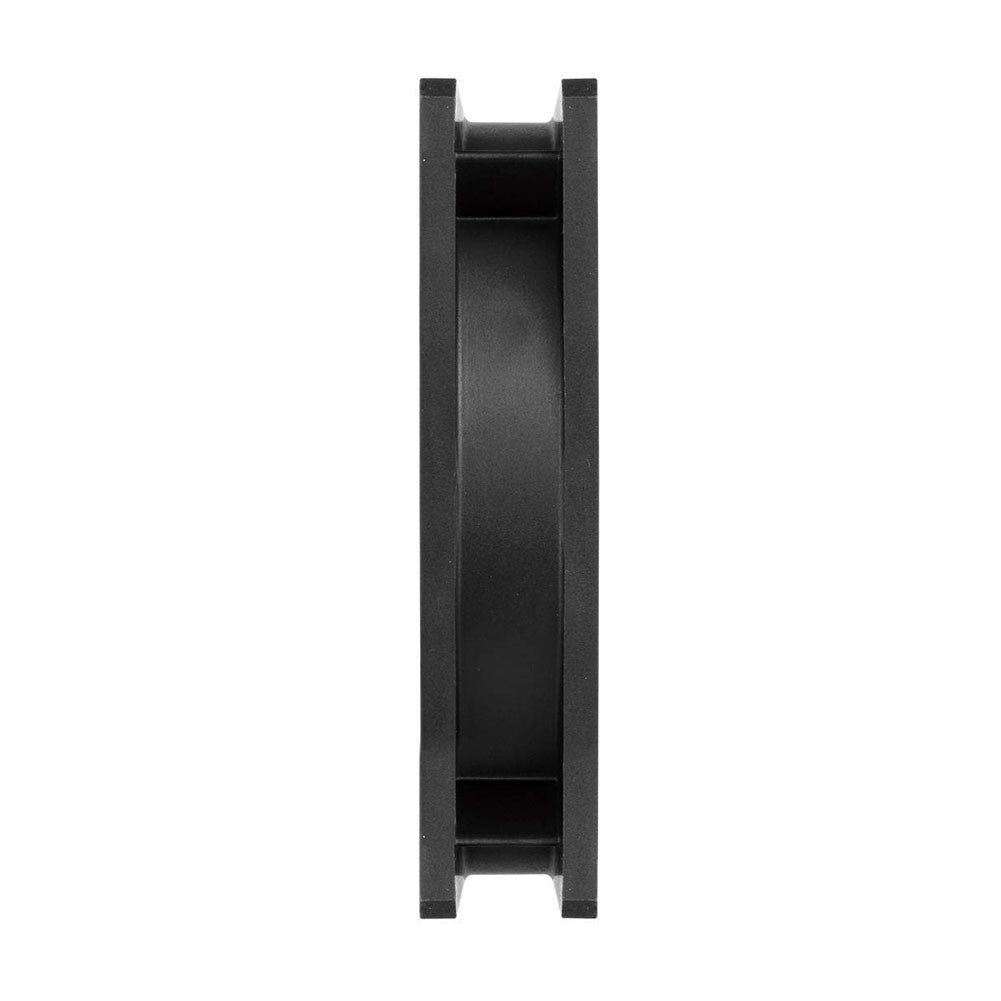

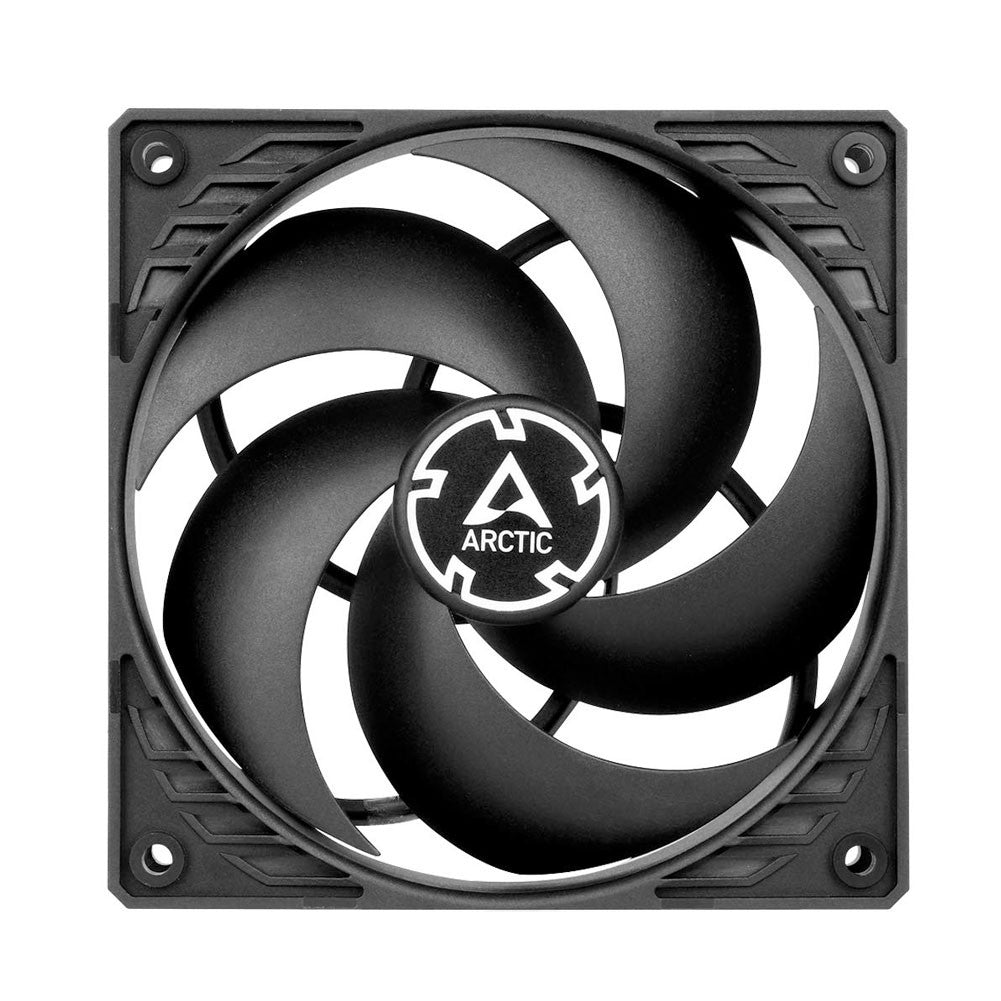

Arctic P12 PWM 120 mm | 1800 rpm | 4-Pin Case Fan (Black) - ACFAN00119A
Out of stock
Features :
- Optimized for static pressure
- Ideal choice on heatsinks, radiators and (partly-) covered case vents
- PWM signal adjusts fan speed
- Newly developed, very quiet motor
- 0 dB mode: silent passive mode when PWM signal is below 5 %
Optimised for Static Pressure
During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Power Consumption
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
ARCTIC motor
anti-vibration-rubber
without vibration absorption
Noise Level
5 % vibration from
commutation
50 % vibration from
commutation
100 % vibration from
commutation
5 % vibration from
commutation
50 % vibration from
commutation
100 % vibration from
commutation
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.
(New ARCTIC Motor)
(Typical DC-Motor)
Coil Temperature @ 22 °C Ambient Temperature
200 to 1800 RPM
regulated via PWM
Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.
In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
0 dB Mode
The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
Push warm air out of the case
Pull cool air into your case
