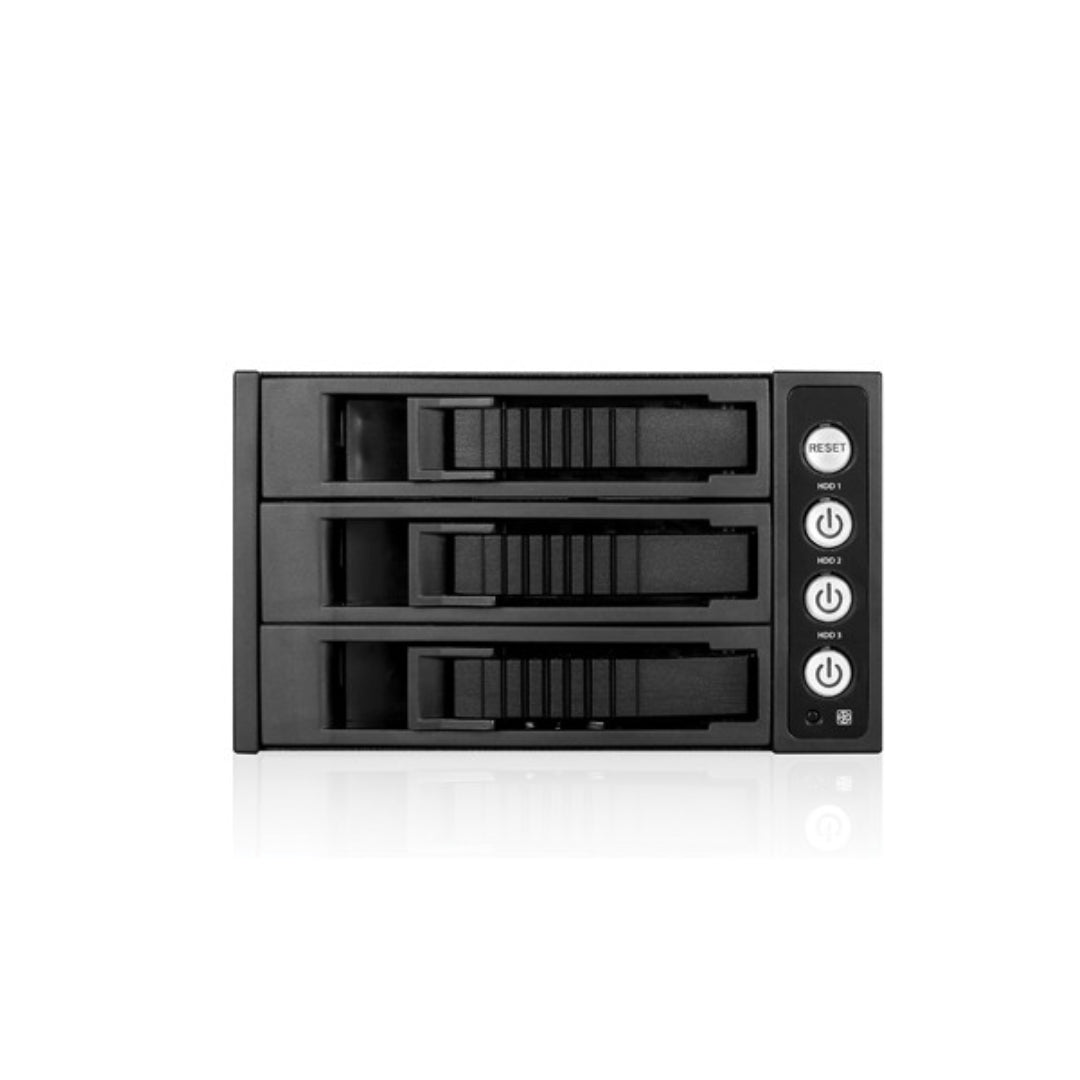

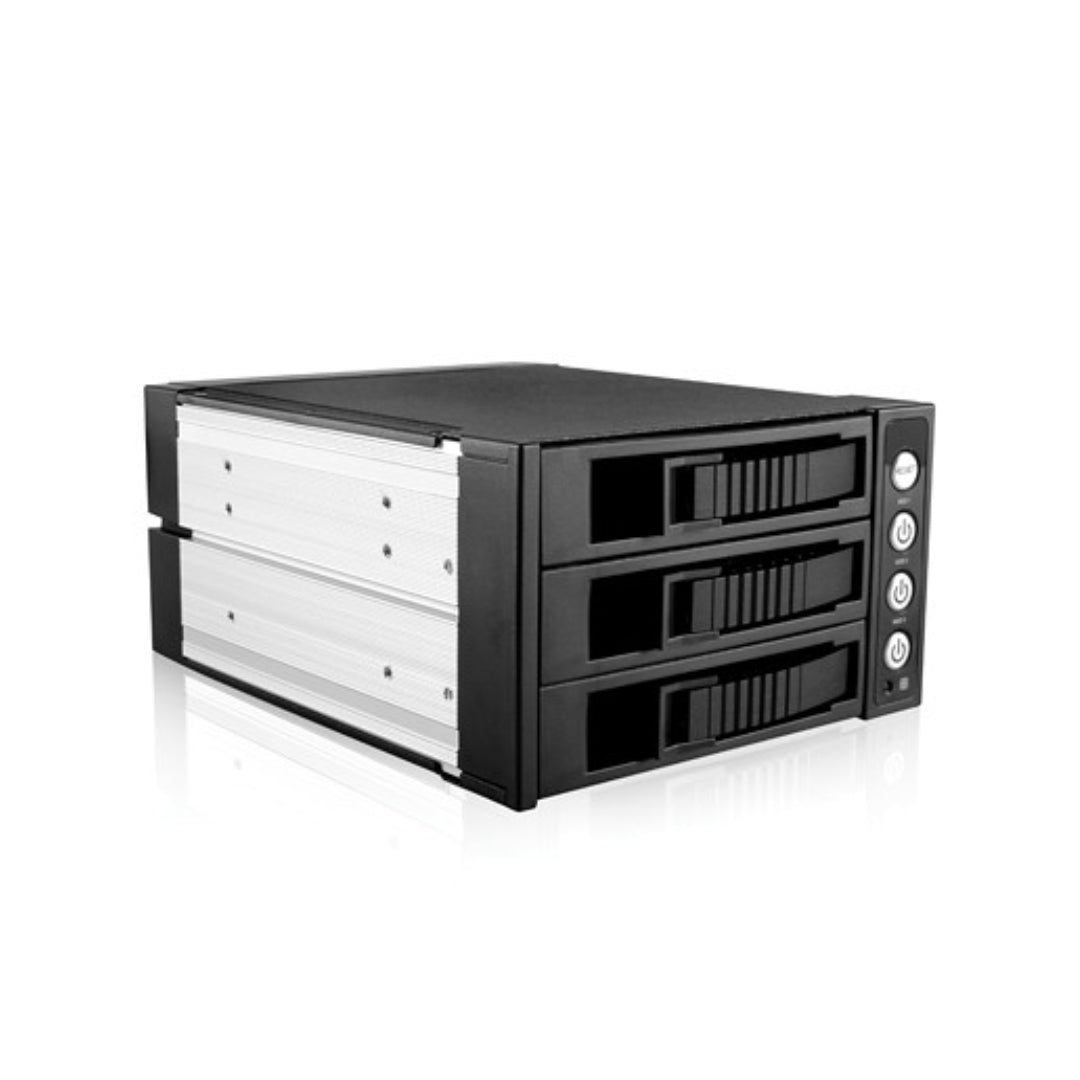

iStarUSA BPU-230SATA | 2×5.25 to 3×3.5"/2.5" Hot-Swap Rack | 6Gb/s
Available in stock (50)
Key Features
- 2×5.25" to 3×3.5"/2.5" Hot-Swap Rack — Converts two 5.25" bays into three drive slots supporting both 3.5" and 2.5" HDD/SSD
- 6Gb/s SAS I/II & SATA I/II/III — High-speed interface for HDDs and SSDs up to 12TB
- Aluminum with Conductive Dissipation Grooves — Stylish color handle and heat-sink body for efficient passive cooling

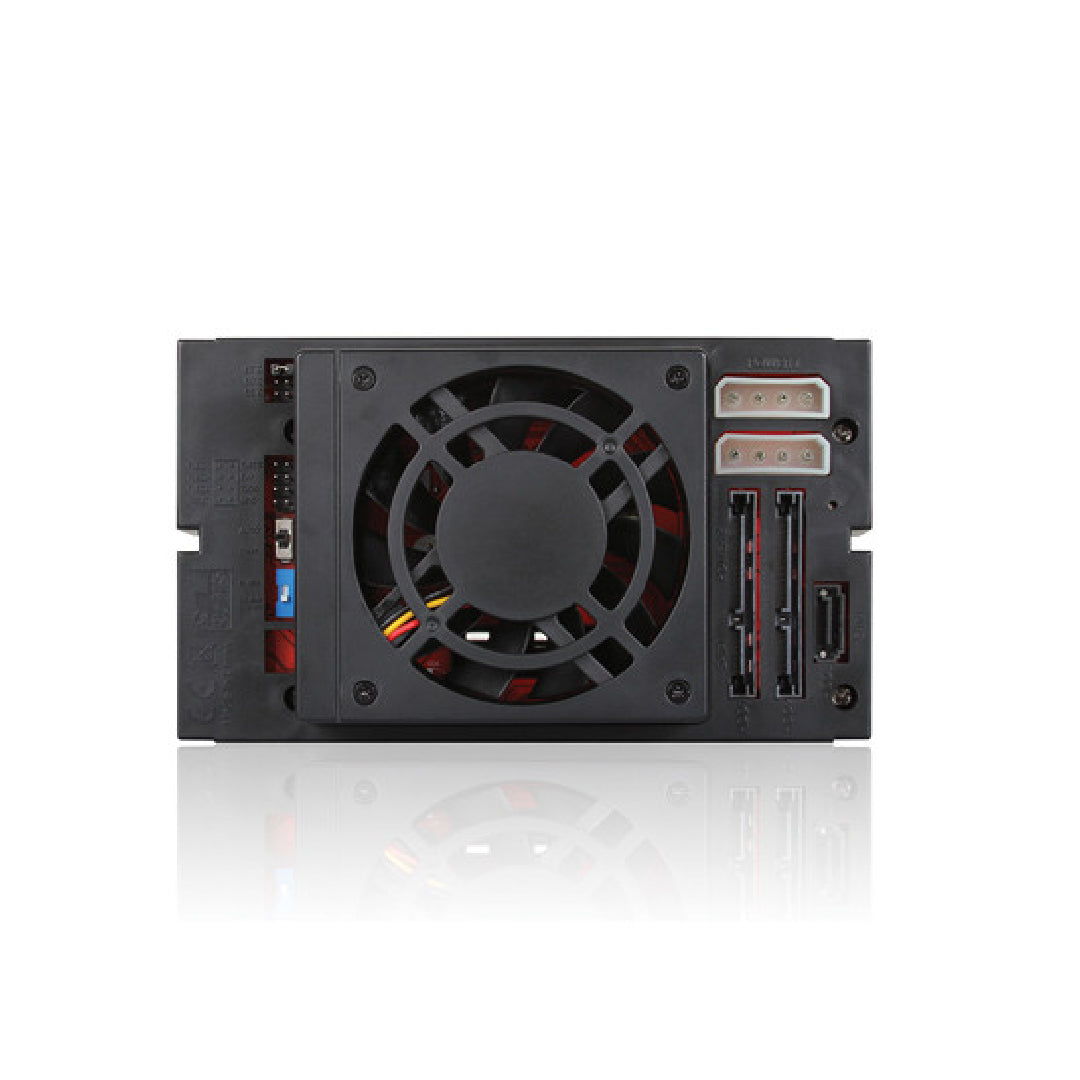

- 70mm Cooling Fan with Front-to-Back Airflow — Active thermal management for sustained drive performance
- Fan Speed Control Switch — Adjustable fan speed for noise and temperature balance
- Power, Fan & High Temperature LED Indicators — Real-time drive status monitoring at a glance
- RAID 0/1/1+0/5 Ready — Supports RAID configurations with a compatible external RAID controller

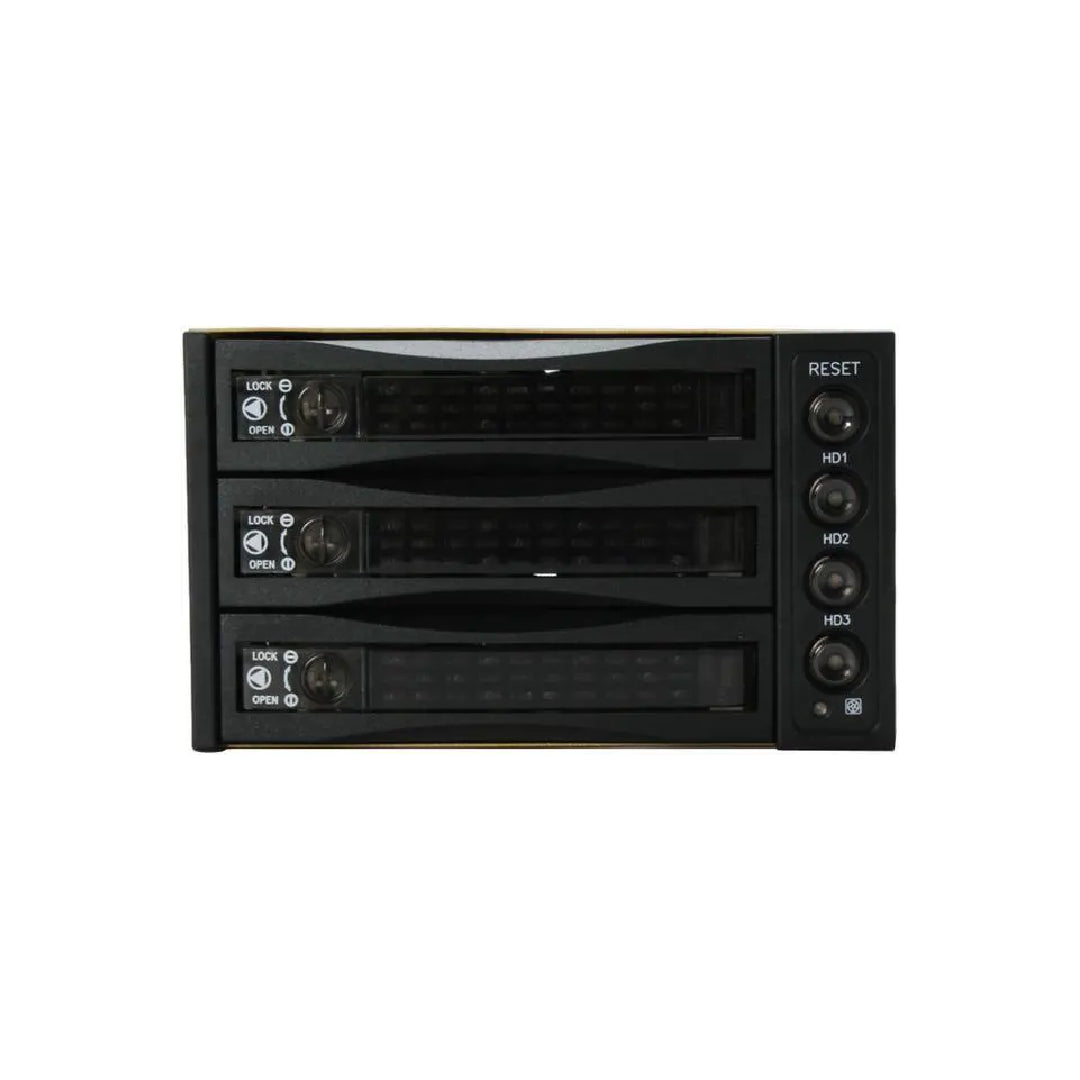

- Lockable Handle Option (BPL) — Black plastic lockable handle variant for physical drive security
- Available in Black, Red & BPL — Three options to match any server or workstation chassis
The iStarUSA BPU-230SATA converts two standard 5.25" external drive bays into three accessible 3.5" or 2.5" SAS/SATA hot-swap drive slots. Supporting SAS I/II and SATA I/II/III at up to 6Gb/s with 12TB compatibility, it delivers compact storage expansion for server, NAS, and workstation environments where bay space is limited. Full aluminum construction with conductive dissipation grooves and a 70mm cooling fan with front-to-back airflow ensures thermal stability under continuous operation.
Hot-swap functionality allows drives to be added, removed, or replaced while the system remains powered on — minimizing downtime. The BPL variant includes a black plastic lockable handle for physical drive security. RAID 0/1/1+0/5 configurations are supported with a compatible external RAID controller, making it suitable for data redundancy, performance, and disk-to-disk backup applications.
Ideal For
- Compact Storage Expansion — Three hot-swap bays in two 5.25" slots for space-efficient drive management
- Mixed HDD & SSD Deployments — Supports both 3.5" and 2.5" drives in the same rack
- RAID & Backup Applications — RAID 0/1/1+0/5 support for data protection and performance
- Secure Storage Deployments — BPL lockable handle for unauthorized access prevention
- Digital Audio, Video Editing & Security Systems — 6Gb/s throughput for demanding data workloads
Variant Options
- Black — MPN: BPU-230SATA-BLACK
- Red — MPN: BPU-230SATA-RED
- Black Plastic Lockable Handle (BPL) — MPN: BPU-230SATA-BPL
Specifications
- Bay Conversion — 2× 5.25" external to 3× 3.5"/2.5" internal
- Drive Support — 2.5" & 3.5" SAS I/II, SATA I/II/III HDD/SSD
- Max Drive Capacity — Up to 12TB
- Transfer Rate — Up to 6Gb/s
- Hot-Swap — Yes
- Cooling — 70mm fan with speed control + conductive dissipation grooves
- Construction — Aluminum with heat-sink body
- LED Indicators — Power, fan, high temperature
- RAID Support — RAID 0/1/1+0/5 (requires external RAID controller)
- Colors — Black, Red, BPL (Black Lockable)
