Dynatron Q6 Alder Lake-S CPU Cooler Heatsink and PWM Fan, 125W TDP | LGA 1700
Dynatron Q6 Alder Lake-S CPU Cooler Heatsink and PWM Fan, 125W TDP | LGA 1700
Out of stock
DYNATRON Q6

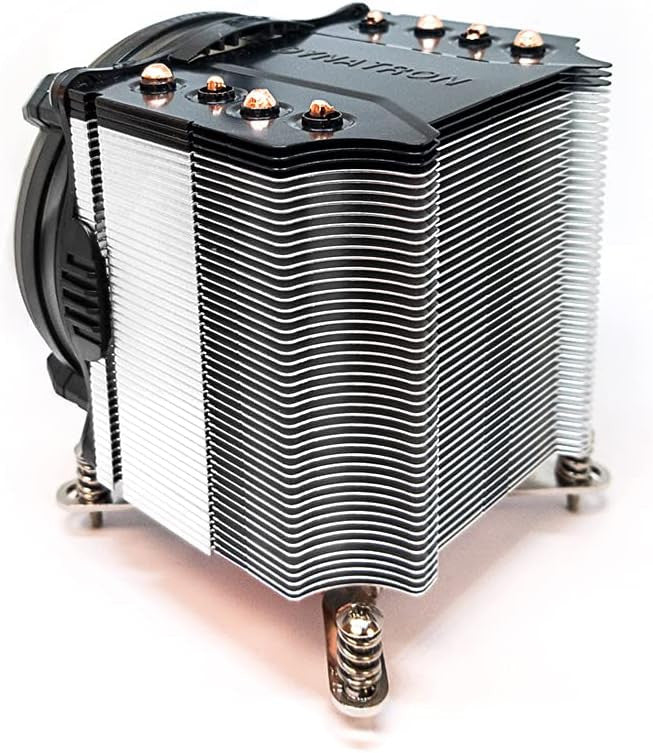

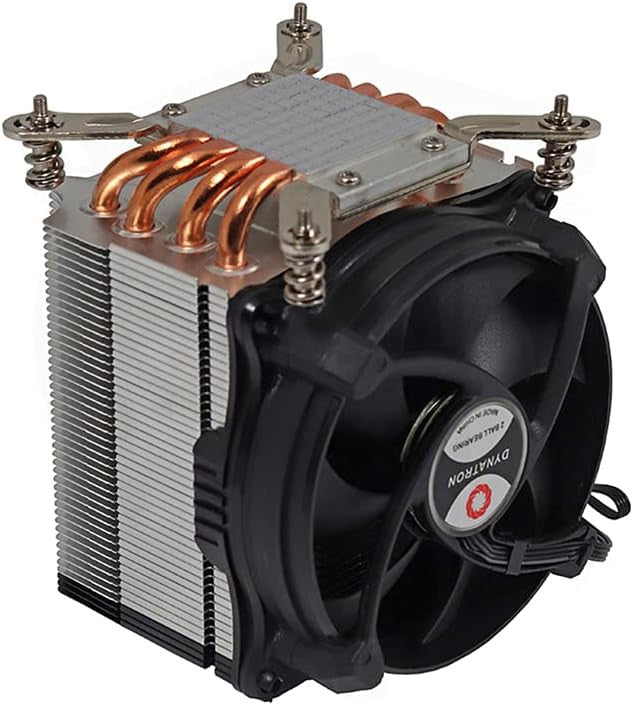

The Dynatron Q6 is a powerful 3U and up active CPU cooler designed for Intel LGA 1851/1700 processors, ideal for high-performance workstations. Featuring a copper base and aluminum heatsink, it provides excellent thermal conductivity. The Q6 is perfect for professional applications requiring consistent thermal management. Its robust design makes it suitable for 3U and larger workstation environments, delivering reliable cooling for demanding tasks like rendering, simulations, and data processing.
- Recommended for Intel Processors as Intel Core 12th -15th Gen, Socket LGA1700/1851
- Active Cooler for Workstation, 3U Server & Up
Overall Specification
- Material: Aluminum Fin + (4x) Heat Pipes with HCC enhancement
- Heat Pipes: Smart Heat Pipes Orientation where Against Gravity
- Fan: 92 CM Plastic Fan with 4-Pin PWM Connector
- Fan Mounting: Pre-installed solid PC Frame Clip for Cooling Fan mounting
- Mounting Method: Easy Cooler Installation with Captive Mounting Screws
- Backing Plate: Included
- Thermal Grease: Shin-Etsu 7762 or Equivalent Thermal Compound Pre-Printed
- TDP: Up to 195 Watts at 30°C ambient temperature
Cooling Fan Specificaion
- Bearing Double Ball
- Rated Voltage 12V
Rated Speed
- At Duty Cycle 0~20%: 1600± 200 RPM
- At Duty Cycle 50%: 2850±10% RPM
- At Duty Cycle 100%: 6000 ±10% RPM
Input Power
- At Duty Cycle 0~20%:0.72 W
- At Duty Cycle 50%: 1.48 W
- At Duty Cycle 100%: 9.60 W
Maximum Airflow
- At Duty Cycle 0~20%: 21.45 CFM
- At Duty Cycle 50%: 48.83 CFM
- At Duty Cycle 100%: 107.25 CFM
Rated Static Pressure
- At Duty Cycle 0~20%: 0.68 mm-H2O
- At Duty Cycle 50%: 5.34 mm-H2O
- At Duty Cycle 100%: 17.10 mm-H2O
Acoustical Noise
- At Duty Cycle 0~20%: 16.00 dBA
- At Duty Cycle 50%: 33.20 dBA
- At Duty Cycle 100%: 50.40 dBA
Lead Wire Pin Out
- Pin#1- Black(-)
- Pin#2- Yellow(+)
- Pin#3- Green(Tachometer/ Signal Output)
- Pin#4- Blue (PWM)
