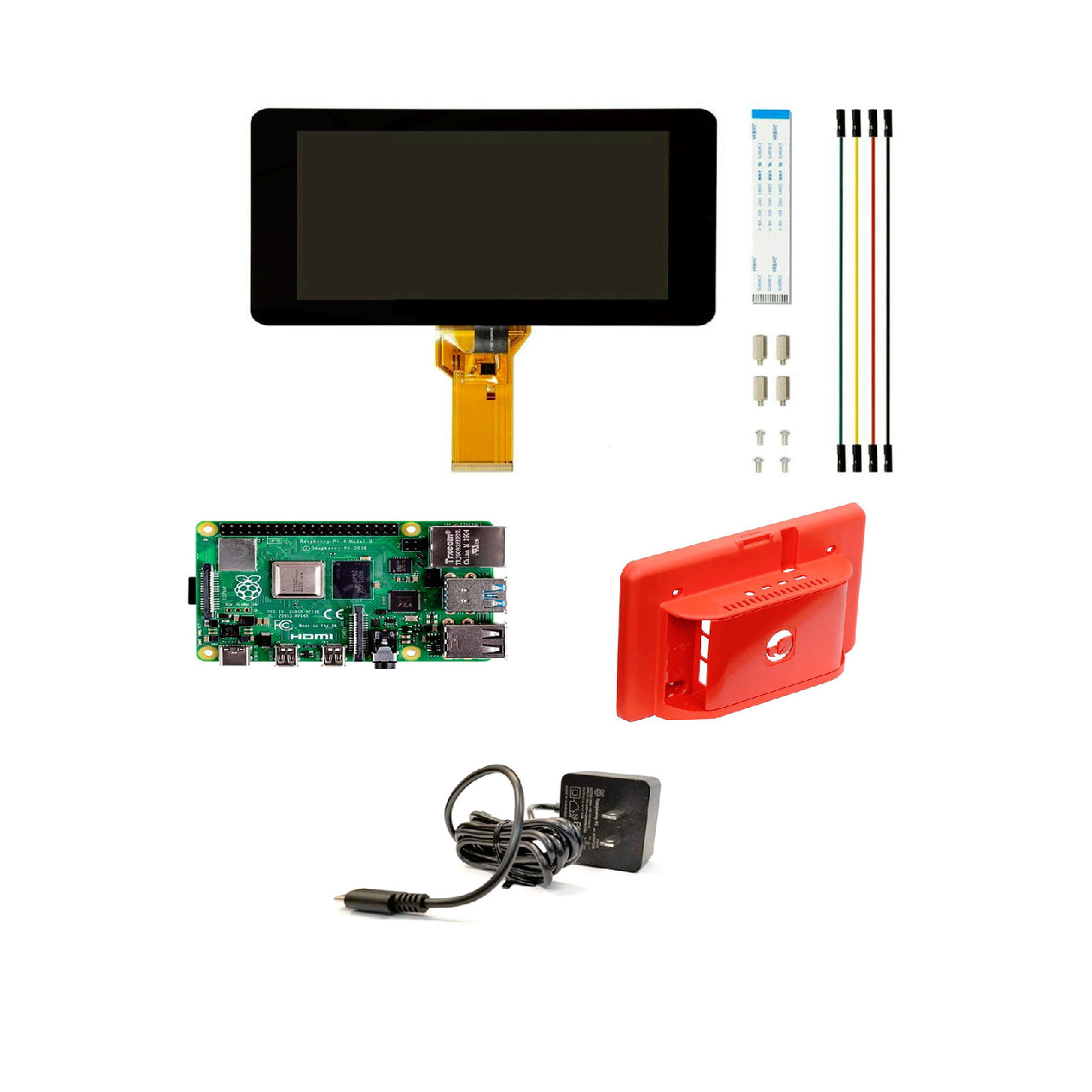

Raspberry Pi 4 Model B WiFi Bluetooth 8GB Touch Screen with Power Supply (Red)

Raspberry Pi 49Y1712 7" Touch Screen Display with 10 Finger Capacitive Touch

The 7” Touch screen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi’s. Touch screen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.

Technical Specification

• 7” Touch screen Display.
• Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
• Viewable screen size: 155mm x 86mm
• Screen Resolution 800 x 480 pixels
• 10 finger capacitive touch.
• Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
• Adapter board is used to power the display and convert the parallel signals from the display to
• the serial (DSI) port on the Raspberry Pi.
• Will require the latest version of Raspbian OS to operate correctly.

Raspberry Pi Model B 2019 Quad Core 64 Bit WiFi Bluetooth (8GB)

Specs :

• Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
• 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
• Gigabit Ethernet
• 2 USB 3.0 ports; 2 USB 2.0 ports.
• Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
• 2 × micro-HDMI ports (up to 4kp60 supported)
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole stereo audio and composite video port
• H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
• OpenGL ES 3.1, Vulkan 1.0
• Micro-SD card slot for loading operating system and data storage
• 5V DC via USB-C connector (minimum 3A*)
• 5V DC via GPIO header (minimum 3A*)
• Power over Ethernet (PoE) enabled (requires separate PoE HAT)
• Operating temperature: 0 – 50 degrees C ambient

The official Raspberry Pi USB-C power supply

WARNINGS

• This product should be operated in a well-ventilated environment.
• The connection of incompatible devices to this power supply may affect compliance, result in damage
• to the unit and invalidate the warranty.

SAFETY INSTRUCTIONS

• To avoid malfunction or damage to this product please observe the following:
• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; this is designed for reliable operation at normal ambient
• room temperatures.
• Do not attempt to open or remove the power supply case.
