Gigabyte GeForce RTX 3060 Ti Gaming OC 8G REV2.0 LHR GV-N306TGAMING OC-8GD REV2.0 8GB 256-bit GDDR6 Video Card

(No reviews yet) Write a Review
MSRP: $649.99
$629.99
$429.99
(You save $220.00 )
MPN
GV-N306TGAMING OC-8GD REV2.0
UPC:
889523029626
Condition:
New
Availability:
Get 50 % Off GPU Support Bracket when you buy this item
Products type: Graphics Card (NVIDIA Series)
Brand: Gigabyte
Core Clock: 1740 MHz (Reference Card: 1665 MHz)
CUDA Cores: 4864
Memory Clock: 14000 MHz
Memory: 8 GB
Memory Type: GDDR6
Memory Bus: 256 bit
Memory Bandwidth (GB/sec): 448 GB/s
Card Bus: PCI-E 4.0 x 16
Digital max resolution: 7680x4320
Multi Display Capability: 4
Card Size: L=282 W=117 H=41 mm
PCB Form: ATX
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 600W
Power Connectors: 8 Pin*1
Output: DisplayPort 1.4a *2 HDMI 2.1 *2
Accessories: Quick guide
5 customers are viewing this product

Select Your Components

GeForce RTX™ 3060 Ti GAMING OC 8G (rev. 2.0)

FEATURES

  • NVIDIA Ampere Streaming Multiprocessors
  • 2nd Generation RT Cores
  • 3rd Generation Tensor Cores
  • Powered by GeForce RTX™ 3060 Ti
  • Integrated with 8GB GDDR6 256-bit memory interface
  • WINDFORCE 3X Cooling System with alternate spinning fans
  • RGB Fusion 2.0
  • Protection metal back plate
  • LHR (Lite Hash Rate) version

CORE CLOCK

1740 MHz (Reference Card: 1665 MHz)

ccgvn306tgamingoc8gdrev20-logo1.jpg ccgvn306tgamingoc8gdrev20-logo2.jpg ccgvn306tgamingoc8gdrev20-logo3.jpg ccgvn306tgamingoc8gdrev20-logo4.jpg

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
screen-cooling-09.png heat-pipes-direct-touch.jpg

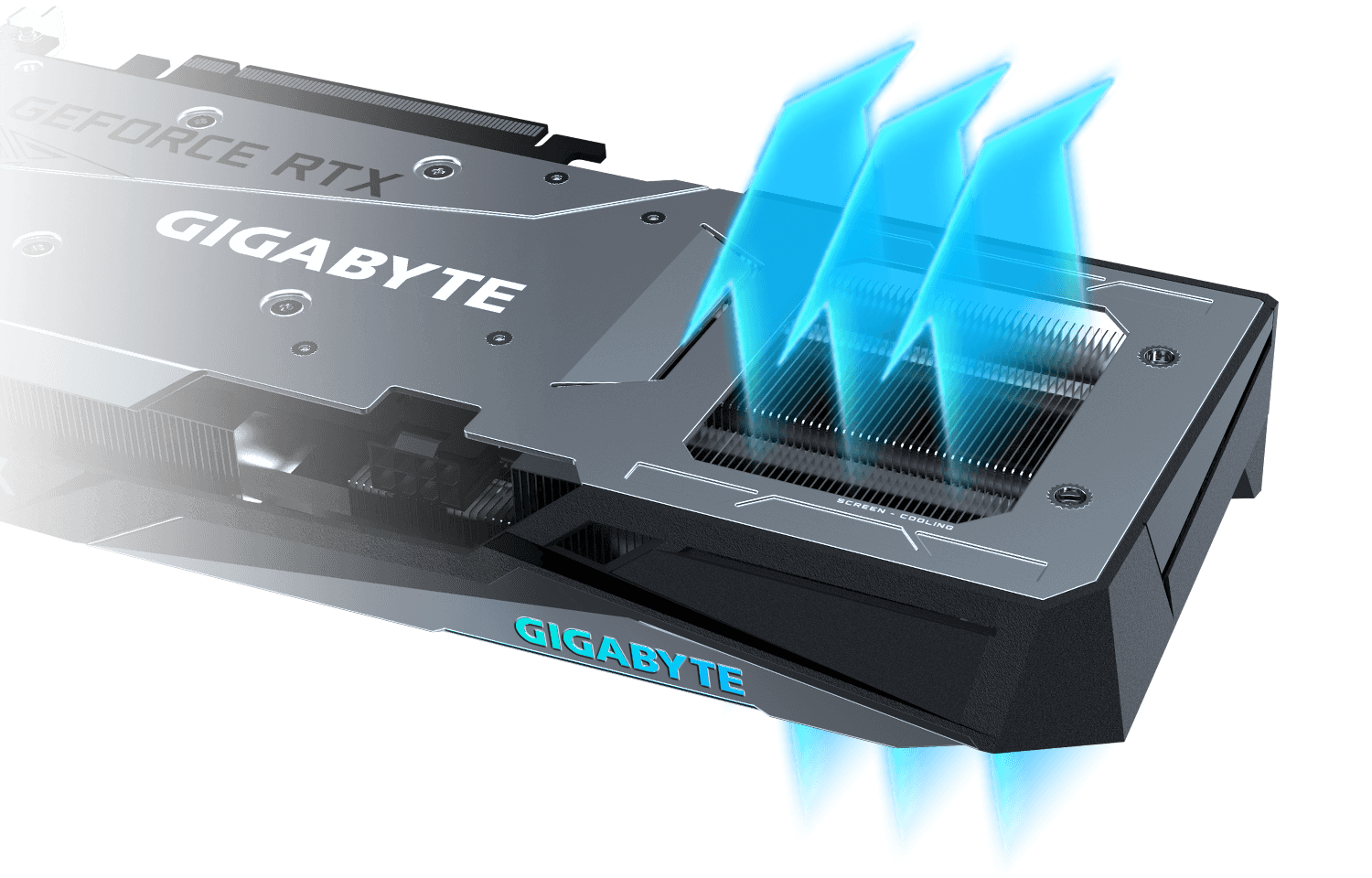

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

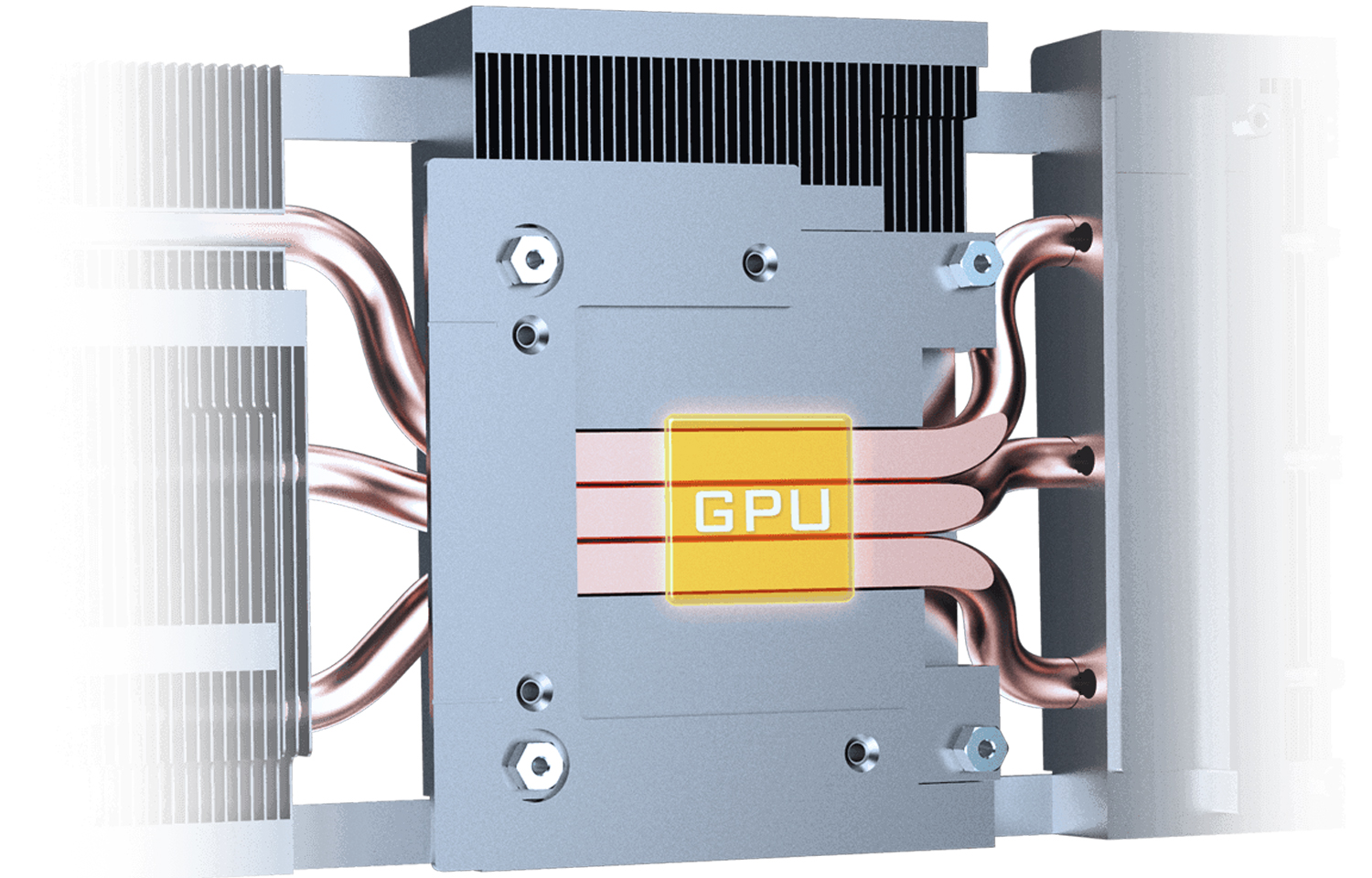

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.


Products type: Graphics Card (NVIDIA Series)
Brand: Gigabyte
Core Clock: 1740 MHz (Reference Card: 1665 MHz)
CUDA Cores: 4864
Memory Clock: 14000 MHz
Memory: 8 GB
Memory Type: GDDR6
Memory Bus: 256 bit
Memory Bandwidth (GB/sec): 448 GB/s
Card Bus: PCI-E 4.0 x 16
Digital max resolution: 7680x4320
Multi Display Capability: 4
Card Size: L=282 W=117 H=41 mm
PCB Form: ATX
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 600W
Power Connectors: 8 Pin*1
Output: DisplayPort 1.4a *2 HDMI 2.1 *2
Accessories: Quick guide
