Arctic

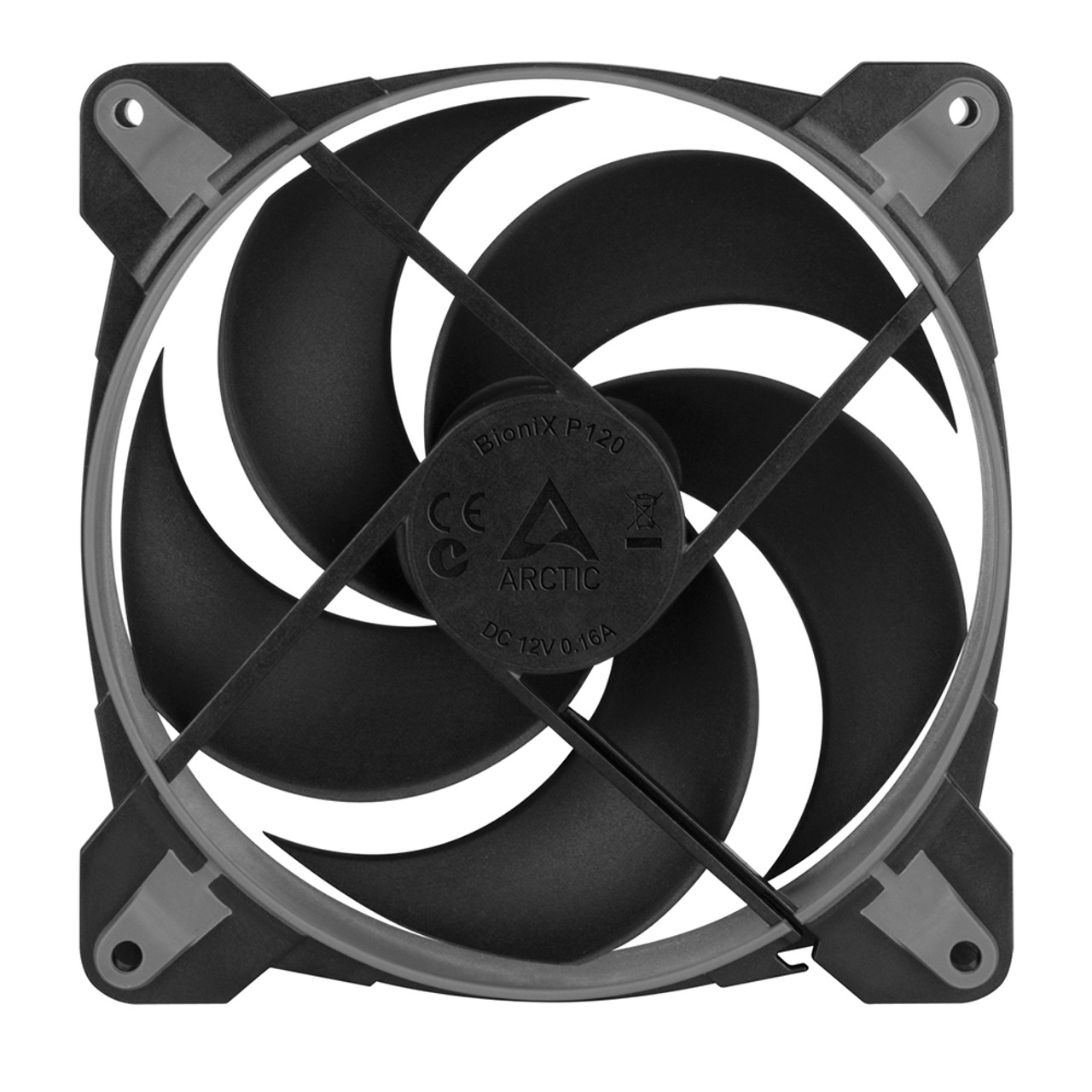

Arctic ACFAN00168A BioniX P120-120 mm Gaming Case Fan PWM Sharing Technology (PST) 200–2100 RPM - Grey

$13.15
MPN
ACFAN00168A
UPC:
840033400114
Condition:
New
Availability:
Available
Speed: 200–2100 rpm, 0 rpm
rpm Control: Pulsweitenmodulation – PWM
Static Pressure: 2.75 mm H2O
Airflow: 67.56 cfm | 114.9 m³/h
Bearing: Fluid Dynamic Bearing
Cable Length: 400 mm
Connector: 4-Pin Connector + 4-Pin Socket
Current/Voltage: 0.13 A/12 V
Starting Voltage: 4.3 V
Noise Level: 0.45 Sone
Ambient Operating Temperature: 0–40 °C
Delivery by ,
If ordered within hours and minutes
Not Shipping to ?
5 customers are viewing this product

edit-a-product-arctic-acfan00168a-bionix-p120-120-mm-gaming-case-fan-pwm-sharing-technology-pst-200-2100-rpm-grey.jpg


Optimised for Static Pressure

During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators.

edit-a-product-arctic-acfan00168a-bionix-p120-120-mm-gaming-case-fan-pwm-sharing-technology-pst-200-2100-rpm-grey-04.jpg

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind. More information can be found in our FAQ.

edit-a-product-arctic-acfan00168a-bionix-p120-120-mm-gaming-case-fan-pwm-sharing-technology-pst-200-2100-rpm-grey-03.jpg

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy without compromising the performance.


Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

edit-a-product-arctic-acfan00168a-bionix-p120-120-mm-gaming-case-fan-pwm-sharing-technology-pst-200-2100-rpm-grey-02.jpg

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.


200 to 2100 rpm Regulated via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P120 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.


High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.



Two Way Installation

  • Blow warm air out of the case
  • Draw cool air into your case

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the BioniX P120.

Speed: 200–2100 rpm, 0 rpm
rpm Control: Pulsweitenmodulation – PWM
Static Pressure: 2.75 mm H2O
Airflow: 67.56 cfm | 114.9 m³/h
Bearing: Fluid Dynamic Bearing
Cable Length: 400 mm
Connector: 4-Pin Connector + 4-Pin Socket
Current/Voltage: 0.13 A/12 V
Starting Voltage: 4.3 V
Noise Level: 0.45 Sone
Ambient Operating Temperature: 0–40 °C
