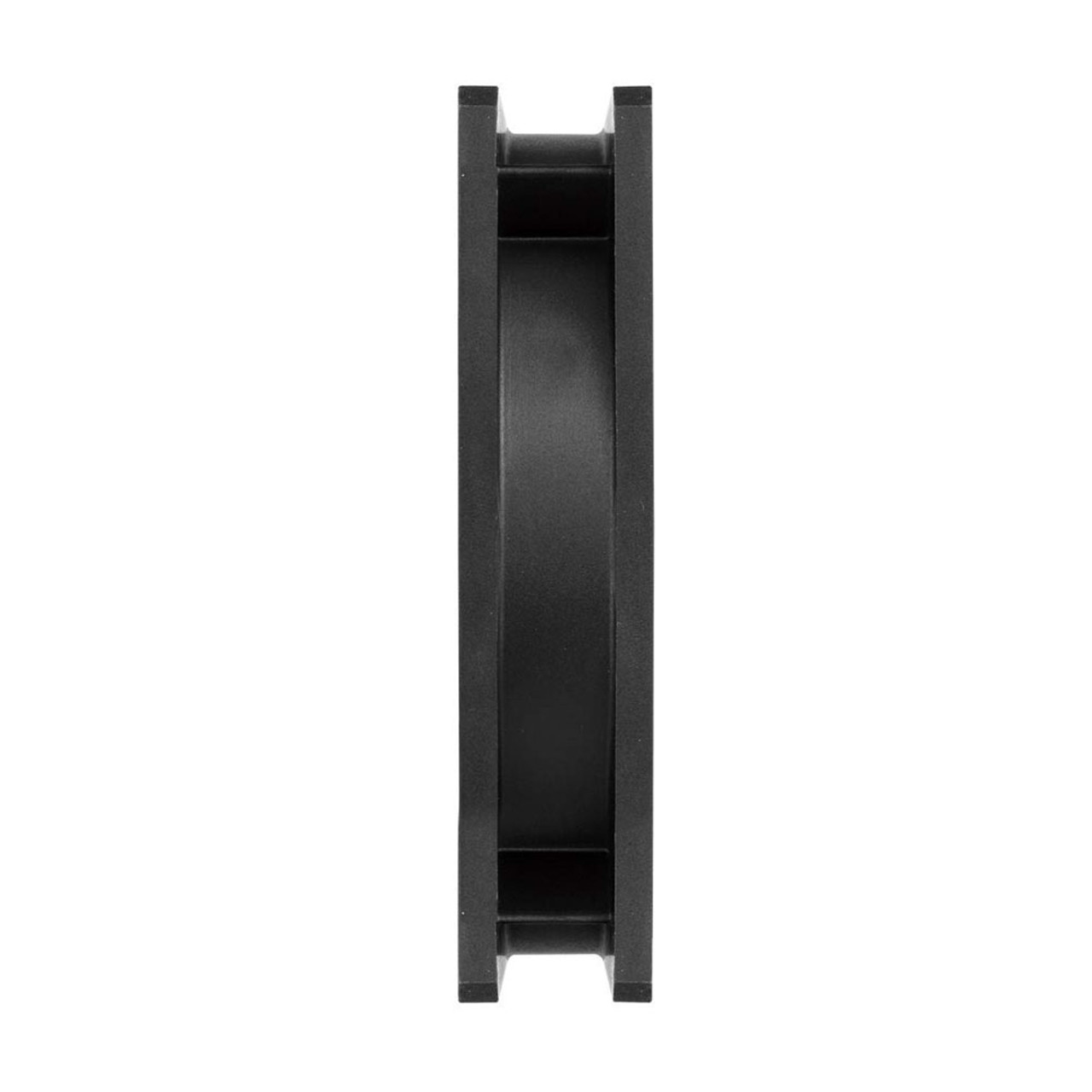

Arctic ACFAN00119A P12 PWM Pressure Optimized 120mm Fan w/ PWM - Black

MSRP: $18.99
$9.05
(You save $9.94 )
MPN
ACFAN00119A
UPC:
872767009332
Condition:
New
Availability:
Available
Brand: Arctic
Fan: 120 mm, 200 - 1800 RPM (Controlled by PWM), 0 dB fan mode
Air Flow:: 56.3 CFM / 95.65 m³/h
Noise Level:: 0.3 Sone (@ 1 800 RPM)
Static Pressure:: 2.2 mm H2O (@ 1 800 U/min)
Typical Voltage:: + 12 V DC
Start-up Voltage:: 3.9 V
Cable Length:: 400 mm
Voltage: 12 V DC
Connection: 4-pin socket
Delivery by ,
If ordered within hours and minutes
Not Shipping to ?
5 customers are viewing this product

Features :

  • Optimized for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • PWM signal adjusts fan speed
  • Newly developed, very quiet motor
  • 0 dB mode: silent passive mode when PWM signal is below 5 %

Optimised for Static Pressure

During the development of the new P12 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM is particularly suitable for use on heatsinks and radiators.



More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

P12 PWM
F12 PWM

Power Consumption

0.96 W @ 1800 RPM
2.88 W @ 1350 RPM

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Fan with newly developed
ARCTIC motor
Fan with regular motor and
anti-vibration-rubber
Fan with regular motor
without vibration absorption

Noise Level

5 % vibration from
commutation

50 % vibration from
commutation

100 % vibration from
commutation

5 % vibration from
commutation

50 % vibration from
commutation

100 % vibration from
commutation



Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

P12 PWM
(New ARCTIC Motor)
No-Name 120 mm Fan
(Typical DC-Motor)

Coil Temperature @ 22 °C Ambient Temperature

34.4 ℃
54.5 ℃

200 to 1800 RPM
regulated via PWM

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM.
In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

0 dB Mode

The P12 PWM is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case

Pull cool air into your case

Brand: Arctic
Fan: 120 mm, 200 - 1800 RPM (Controlled by PWM), 0 dB fan mode
Air Flow:: 56.3 CFM / 95.65 m³/h
Noise Level:: 0.3 Sone (@ 1 800 RPM)
Static Pressure:: 2.2 mm H2O (@ 1 800 U/min)
Typical Voltage:: + 12 V DC
Start-up Voltage:: 3.9 V
Cable Length:: 400 mm
Voltage: 12 V DC
Connection: 4-pin socket
